892-100 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 100POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Card Type	Pitch	Pitch	Read Out	Contact Finish Thickness	Contact Finish Thickness	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Material	Contact Type	Mounting Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Number of Positions	Contact Finish	Number of Positions/Bay/Row	Color	Features
EDAC Inc. 892-100-523-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Through Hole	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	2	100	Gold	50	Black
EDAC Inc. 892-100-544-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Wire Wrap	125 °C	-40 C	Female	Copper Alloy	Cantilever	Through Hole	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	2	100	Gold	50	Black
EDAC Inc. 892-100-559-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Right Angle Through Hole				2	100	Gold	50	Black
EDAC Inc. 892-100-521-208	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Through Hole	4-40 Flush Mount Threaded Insert Top Opening			2	100	Gold	50	Black
EDAC Inc. 892-100-540-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Wire Wrap	125 °C	-40 C	Female	Copper Alloy	Cantilever	Through Hole				2	100	Gold	50	Black

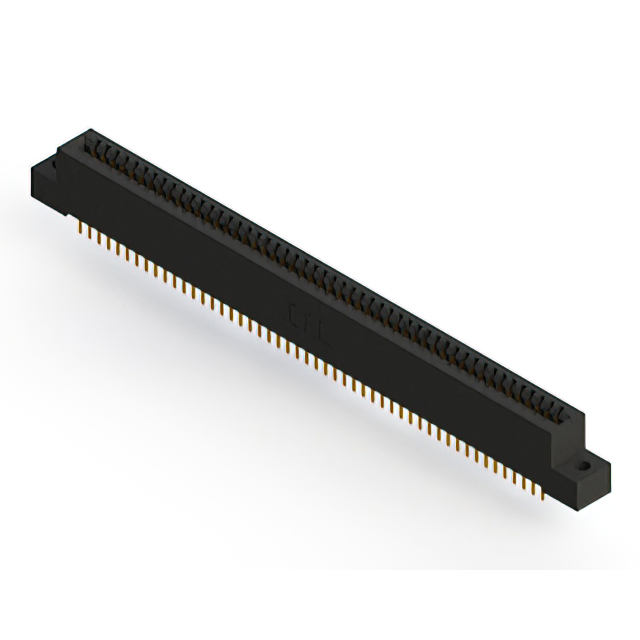

EDAC Inc. 892-100-521-202	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Through Hole	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	100	Gold	50	Black
EDAC Inc. 892-100-520-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Through Hole	Flush Mount M3 Threaded Insert Top Opening			2	100	Gold	50	Black
EDAC Inc. 892-100-521-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Through Hole	Floating Bobbin Flush Mount	0.116 "	2.95 mm	2	100	Gold	50	Black
EDAC Inc. 892-100-556-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Board Edge Straddle Mount	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	100	Gold	50	Black	Card Extender
EDAC Inc. 892-100-555-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Female	Copper Alloy	Cantilever	Board Edge Straddle Mount	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	100	Gold	50	Black	Card Extender
