103310 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 50 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Features	Mounting Type	Connector Type	Style	Contact Shape	Termination	Insulation Height	Insulation Height	Contact Material	Current Rating (Amps)	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions [custom]

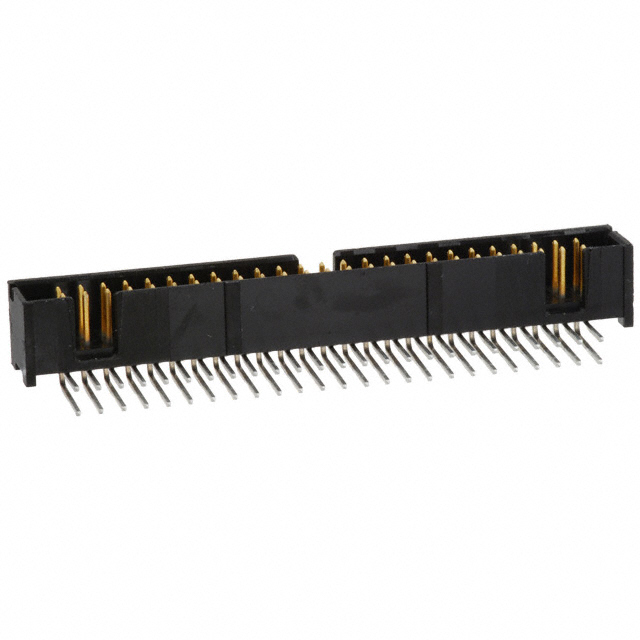

TE Connectivity AMP Connectors 1-103310-0	2.54 µm	100 µin	Black	All	50	0.24 in	6.1 mm	0.1 in	2.54 mm	Gold or Gold-Palladium	Shrouded - 4 Wall	UL94 V-0	0.1 "	2.54 mm	Tin-Lead	Keying Slot	Right Angle Through Hole	Header	Board to Cable/Wire	Square	Solder	9.14 mm	0.36 in	Brass	1 A	2	105 ░C	-65 ░C	Male Pin	0.135 in	3.43 mm	0.38 µm	15 µin	Push-Pull
TE Connectivity AMP Connectors 103310-6	2.54 µm	100 µin	Black	All	26	0.24 in	6.1 mm	0.1 in	2.54 mm	Gold or Gold-Palladium	Shrouded - 4 Wall	UL94 V-0	0.1 "	2.54 mm	Tin-Lead	Keying Slot	Right Angle Through Hole	Header	Board to Cable/Wire	Square	Solder	9.14 mm	0.36 in	Brass	1 A	2	105 ░C	-65 ░C	Male Pin	0.135 in	3.43 mm	0.38 µm	15 µin	Push-Pull

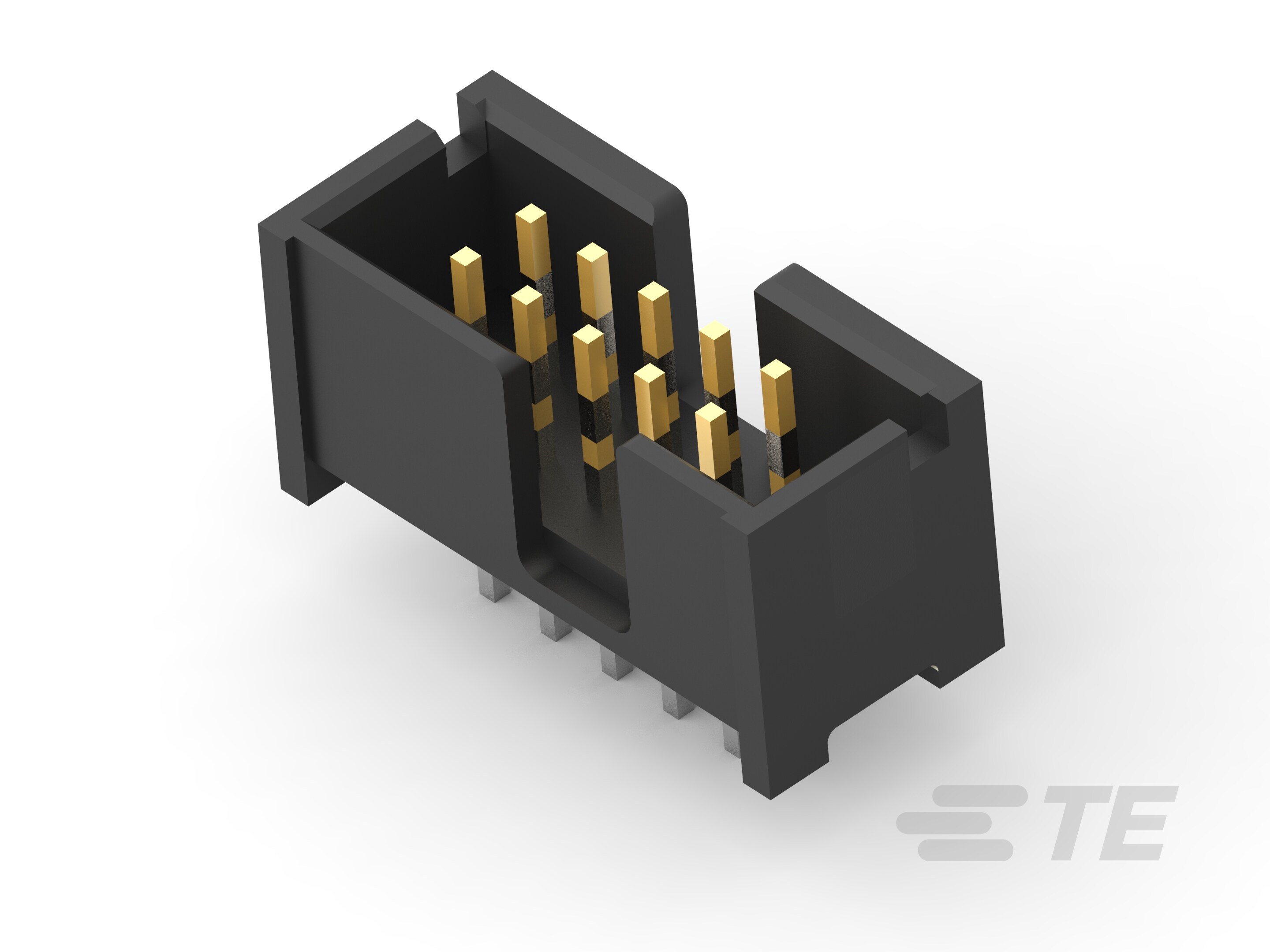

TE Connectivity AMP Connectors 103310-1	2.54 µm	100 µin	Black	All	10	0.24 in	6.1 mm	0.1 in	2.54 mm	Gold or Gold-Palladium	Shrouded - 4 Wall	UL94 V-0	0.1 "	2.54 mm	Tin-Lead	Keying Slot	Right Angle Through Hole	Header	Board to Cable/Wire	Square	Solder	9.14 mm	0.36 in	Brass	1 A	2	105 ░C	-65 ░C	Male Pin	0.135 in	3.43 mm	0.38 µm	15 µin	Push-Pull

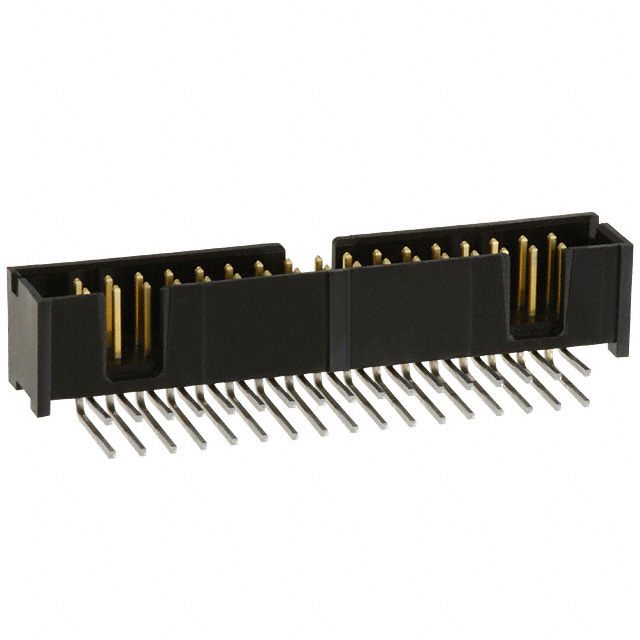

TE Connectivity AMP Connectors 103310-7	2.54 µm	100 µin	Black	All		0.24 in	6.1 mm	0.1 in	2.54 mm	Gold or Gold-Palladium	Shrouded - 4 Wall	UL94 V-0	0.1 "	2.54 mm	Tin-Lead	Keying Slot	Right Angle Through Hole	Header	Board to Cable/Wire	Square	Solder	9.14 mm	0.36 in	Brass	1 A	2	105 ░C	-65 ░C	Male Pin	0.135 in	3.43 mm	0.38 µm	15 µin	Push-Pull	34

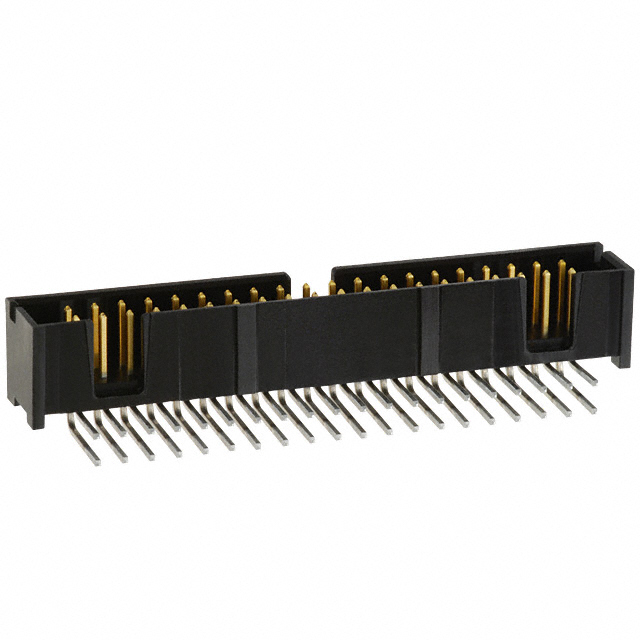

TE Connectivity AMP Connectors 103310-8	2.54 µm	100 µin	Black	All	40	0.24 in	6.1 mm	0.1 in	2.54 mm	Gold or Gold-Palladium	Shrouded - 4 Wall	UL94 V-0	0.1 "	2.54 mm	Tin-Lead	Keying Slot	Right Angle Through Hole	Header	Board to Cable/Wire	Square	Solder	9.14 mm	0.36 in	Brass	1 A	2	105 ░C	-65 ░C	Male Pin	0.135 in	3.43 mm	0.38 µm	15 µin	Push-Pull
TE Connectivity AMP Connectors 103310-3	2.54 µm	100 µin	Black	All	16	0.24 in	6.1 mm	0.1 in	2.54 mm	Gold or Gold-Palladium	Shrouded - 4 Wall	UL94 V-0	0.1 "	2.54 mm	Tin-Lead	Keying Slot	Right Angle Through Hole	Header	Board to Cable/Wire	Square	Solder	9.14 mm	0.36 in	Brass	1 A	2	105 ░C	-65 ░C	Male Pin	0.135 in	3.43 mm	0.38 µm	15 µin	Push-Pull
