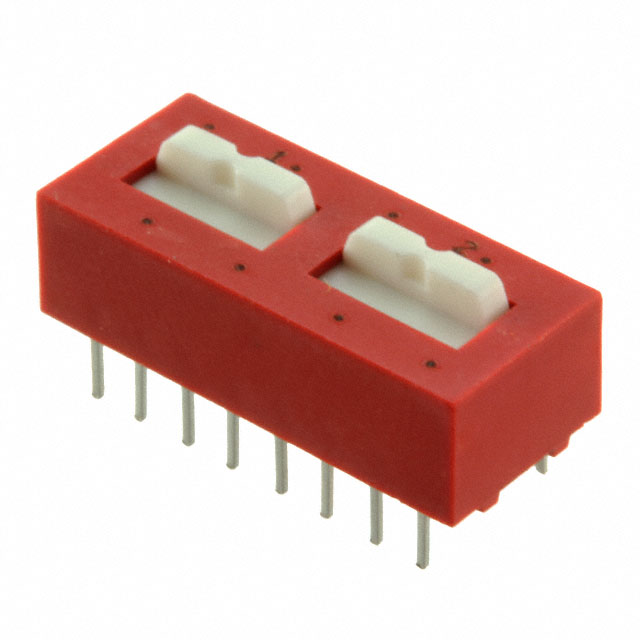

78K02 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP DPDT 0.15A 30V
| Part | Length | Length | Electrical Life | Mechanical Life | Body Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Termination Style | Actuator Level | Contact Material | Number of Positions | Actuator Type | Washable | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Circuit | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 0.88 in | 22.35 mm | 2000 Steps | 2000 Cycles | Thermoplastic | Through Hole | 85 °C | -40 C | 2.54 mm | 0.1 " | PC Pin | Raised | Copper Alloy | 2 | Slide (Standard) | 0.315 in | 8 mm | 30 VDC | DPDT | Gold |
