LCC1000 Series

Catalog

CONN TERM RECT TONG 1000MCM #3/8

Part	Contact Finish	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Mounting Type	Color	Terminal Style	Wire Gauge	Wire Gauge	Tab Thickness	Tab Thickness	Termination	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]
Panduit Corp LCC1000-38D-3	Electro-Tin	1.17 in	29.72 mm	10.41 mm	0.41 "	Copper	38.1 mm	1.5 in	Rectangular Tongue	55.12 mm	2.17 "	Non-Insulated	Free Hanging (In-Line)	White	Two Stud Holes	1000 kcmil	1000 MCM	0.32 "	8.13 mm	Barrel Crimp	0.375 Stud	6.35 "	161.29 mm
Panduit Corp LCC1000-38WH-3

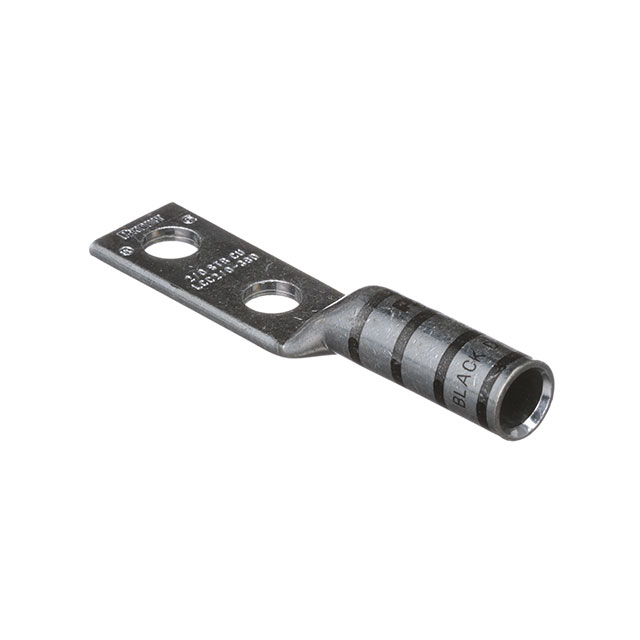

Panduit Corp LCC1000-38DW-3	Electro-Tin	1.17 in	29.72 mm	10.41 mm	0.41 "	Copper	38.1 mm	1.5 in	Rectangular Tongue	55.12 mm	2.17 "	Non-Insulated	Free Hanging (In-Line)	White	Two Stud Holes	1000 kcmil	1000 MCM	0.32 "	8.13 mm	Barrel Crimp	0.375 Stud	5.95 in	151.13 mm
