SSL-LX2573 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LED GREEN CLEAR RECT 2MMX3MM T/H
| Part | Lens Transparency | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Configuration | Lens Color | Viewing Angle | Mounting Type | Current - Test | Lens Style | Height (Max) [Max] [z] | Supplier Device Package [y] | Supplier Device Package [x] | Color | Lens Size [y] | Lens Size [x] | Wavelength - Peak | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Clear | 3 mm | 2 mm | Radial | 65 mcd | 2.1 V | Independent | Green | 90 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | 3 mm | 2 mm | Green | 2 mm | 5 mm | ||
 Lumex Opto/Components Inc. | Diffused | Radial | 70 mcd | 3.5 V | Standard | Blue | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Blue | 2 mm | 5 mm | 470 nm | Rectangular 2mmx5mm | ||||
Lumex Opto/Components Inc. | Diffused | Radial | 3 mcd | 2 V | Standard | Red | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Red | 2 mm | 5 mm | 700 nm | Rectangular 2mmx5mm | ||||

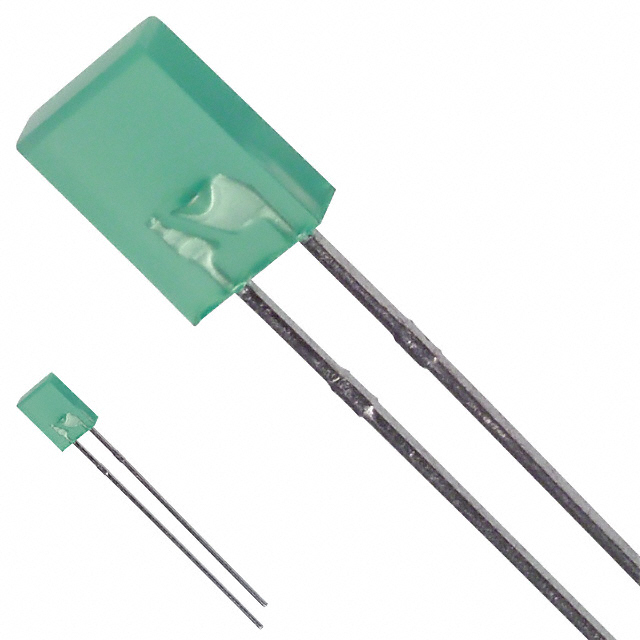

 Lumex Opto/Components Inc. | Diffused | Radial | 6 mcd | 2.1 V | Standard | Green | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Green | 2 mm | 5 mm | 555 nm | Rectangular 2mmx5mm | ||||
Lumex Opto/Components Inc. | ||||||||||||||||||||
Lumex Opto/Components Inc. | Diffused | Radial | 100 mcd | 2 V | Standard | Red | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Red | 2 mm | 5 mm | 636 nm | Rectangular 2mmx5mm | ||||
Lumex Opto/Components Inc. | Diffused | Radial | 6 mcd | 2.1 V | Standard | White | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Green | 2 mm | 5 mm | 555 nm | Rectangular 2mmx5mm | ||||

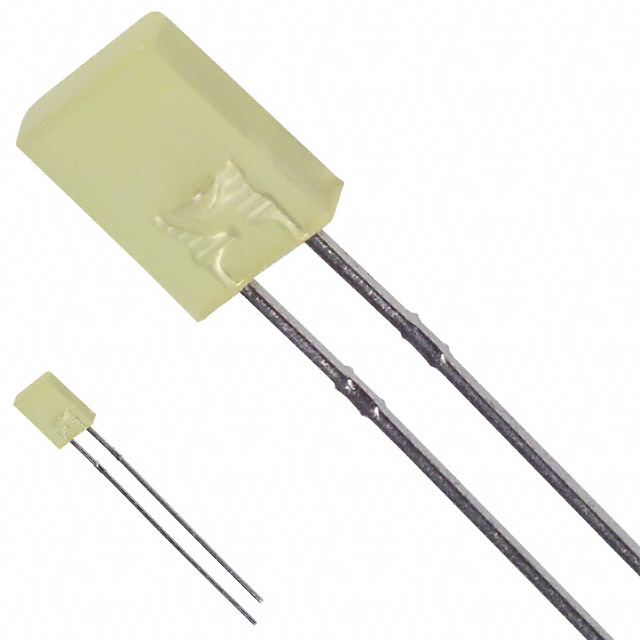

 Lumex Opto/Components Inc. | Diffused | Radial | 10 mcd | 2.1 V | Standard | Yellow | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Yellow | 2 mm | 5 mm | 585 nm | Rectangular 2mmx5mm | ||||

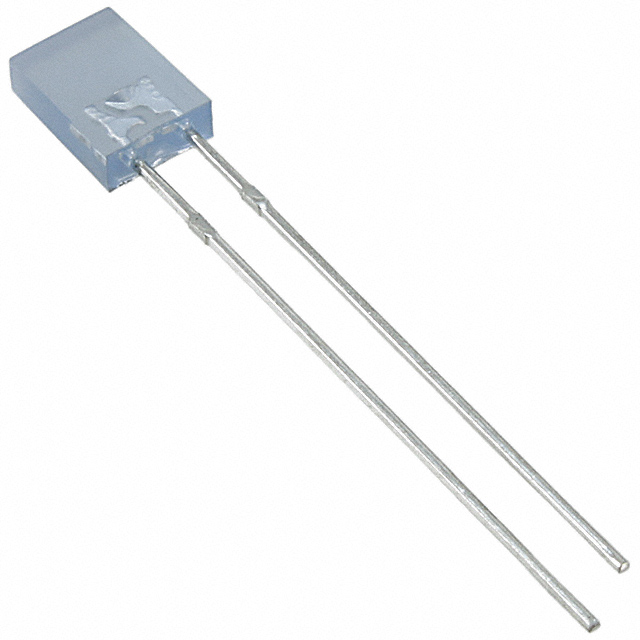

Lumex Opto/Components Inc. | Diffused | Radial | 3 mcd | 4.5 V | Standard | Blue | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Blue | 2 mm | 5 mm | 430 nm | Rectangular 2mmx5mm | ||||

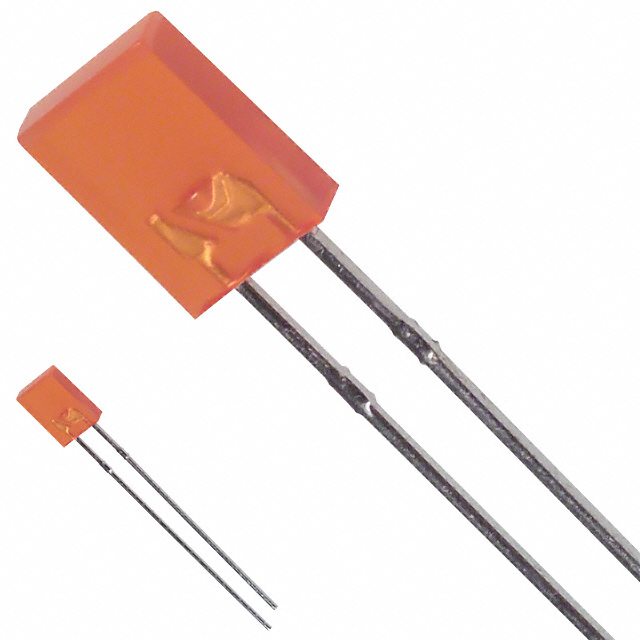

 Lumex Opto/Components Inc. | Diffused | Radial | 5 mcd | 2 V | Standard | Amber | 110 ° | Through Hole | 20 mA | Rectangle with Flat Top | 7 mm | Amber | 2 mm | 5 mm | 605 nm | Rectangular 2mmx5mm |
