179DT Series
Manufacturer: Belden Inc.
Beta
⌘K
#28H PE/GIFPE SH PVC
| Part | Shield Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Jacket (Insulation) Material | Usage | Cable Group | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length [x] | Length [x] | Cable Type | Impedance | Conductor Strand | Shield Type | Contact Termination | Center Contact Material | Connector Type | Fastening Type | Housing Color | Shield Termination | Number of Ports | Frequency - Max [Max] | Mounting Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 95 % 100 % | 1.42 mm | 0.056 in | 79 | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Datacom Network | RG-179 | 28 AWG | 2.54 mm | 0.1 in | Blue | 304.8 m | 1000 ft | Coaxial | 75 Ohms | Solid | Braid Foil | ||||||||||
Belden Inc. | Aluminum Copper Tinned | 95 % 100 % | 1.42 mm | 0.056 in | 79 | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Datacom Network | RG-179 | 28 AWG | 2.54 mm | 0.1 in | Violet | 304.8 m | 1000 ft | Coaxial | 75 Ohms | Solid | Braid Foil | ||||||||||
 Belden Inc. | Aluminum Copper Tinned | 95 % 100 % | 1.42 mm | 0.056 in | 79 | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Datacom Network | RG-179 | 28 AWG | 2.54 mm | 0.1 in | Gray | 304.8 m | 1000 ft | Coaxial | 75 Ohms | Solid | Braid Foil | ||||||||||
 Belden Inc. | ||||||||||||||||||||||||||||||||

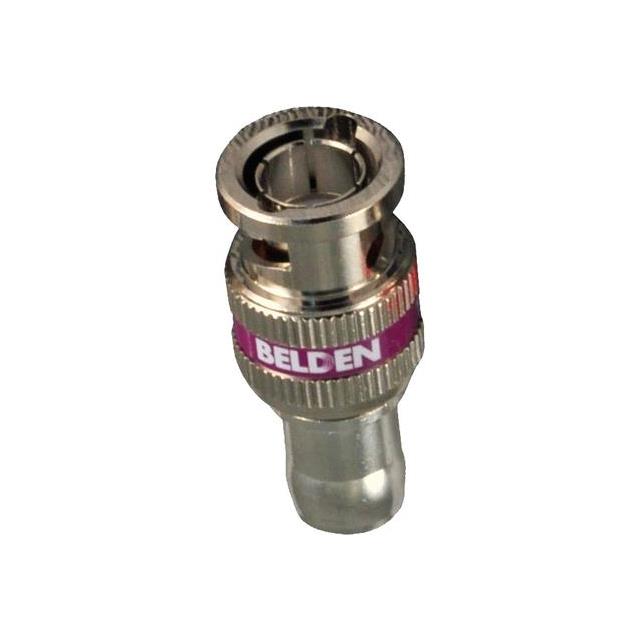

Belden Inc. | RG-59 | 75 Ohms | Compression | Brass | Plug Male Pin | Bayonet Lock | Silver | Compression | 1 | 6000 MHz | Free Hanging (In-Line) | BNC HD | ||||||||||||||||||||
 Belden Inc. | Aluminum Copper Tinned | 95 % 100 % | 1.42 mm | 0.056 in | 79 | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Datacom Network | RG-179 | 28 AWG | 2.54 mm | 0.1 in | Green | 304.8 m | 1000 ft | Coaxial | 75 Ohms | Solid | Braid Foil | ||||||||||
 Belden Inc. | Aluminum Copper Tinned | 95 % 100 % | 1.42 mm | 0.056 in | 79 | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Datacom Network | RG-179 | 28 AWG | 2.54 mm | 0.1 in | Yellow | 304.8 m | 1000 ft | Coaxial | 75 Ohms | Solid | Braid Foil |
