TJ02 Series

Catalog

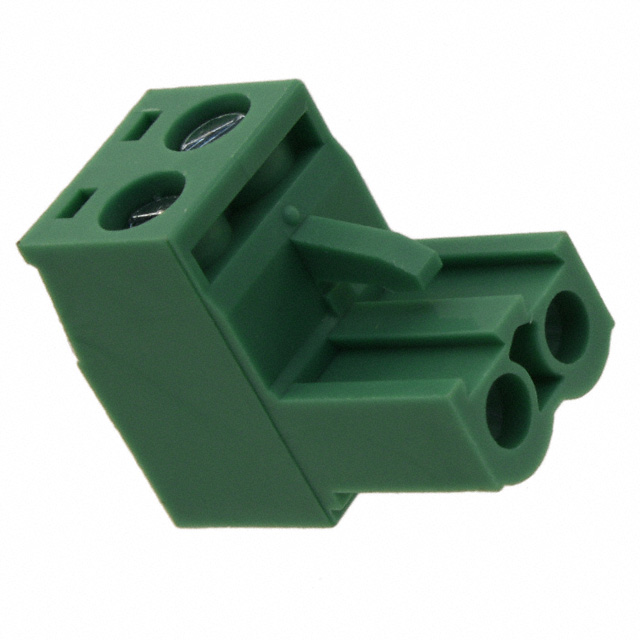

TERM BLOCK PLUG 2POS STR 5.08MM

Part	Color	Insulation Height	Insulation Height	Mounting Type	Type	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Wire Strip Length [Min]	Wire Strip Length [Max]	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Positions Per Level	Housing Material	Material Flammability Rating	Number of Positions	Screw Size	Termination Style	Contact Material	Features	Wire Gauge or Range - mm²	Voltage - IEC	Current - IEC
Amphenol Anytek TJ0251530000G	Green	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1	2.5 mm²	1 mm²	-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	12 A	0.2 in	5.08 mm	0.56 Nm	5 Lb-In	2	Thermoplastic Resin	UL94 V-0	2	M3	Screw - Rising Cage Clamp	Copper Alloy
Amphenol Anytek TJ0271860000G	Gray	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1			-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.197 in	5 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper
Amphenol Anytek TJ0271570000G	Green	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1			-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.197 in	5 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper	Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek TJ0211540000G	Green			Free Hanging (In-Line)	Plug Female Sockets	1			-40 °C	115 °C	Tin	6 mm	7 mm	300 V	28 AWG	16 AWG	10 A	0.138 in	3.5 mm			2	Thermoplastic	UL94 V-0	2	M2	Screw	Phosphor Bronze	Strain Relief	1.5 mm²	300 V	10.5 A
Amphenol Anytek TJ02A1520000G	Green	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1			-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.295 in	7.5 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper	Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek TJ0251820000G	Gray	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1	2.5 mm²	0.34 mm²	-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.2 in	5.08 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper	Mating Flange Retention Latches (Non-Wire Side)		300 V	20 A
Amphenol Anytek TJ0201000000G	Black	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1			-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.3 in	7.62 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper
Amphenol Anytek TJ02A1500000G	Green	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1			-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.295 in	7.5 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper
Amphenol Anytek TJ0201500000G	Green	0.594 in	15.09 mm	Free Hanging (In-Line)	Plug Female Sockets	1			-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.3 in	7.62 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper
Amphenol Anytek TJ0251540000G	Green			Free Hanging (In-Line)	Plug Female Sockets	1	2.5 mm²	0.34 mm²	-40 °C	115 °C	Tin	7 mm	8 mm	300 V	24 AWG	12 AWG	20 A	0.2 in	5.08 mm	0.56 Nm	5 Lb-In	2	Thermoplastic	UL94 V-0	2	M3	Screw	Copper	Retention Latches (Non-Wire Side) Strain Relief		300 V	20 A
