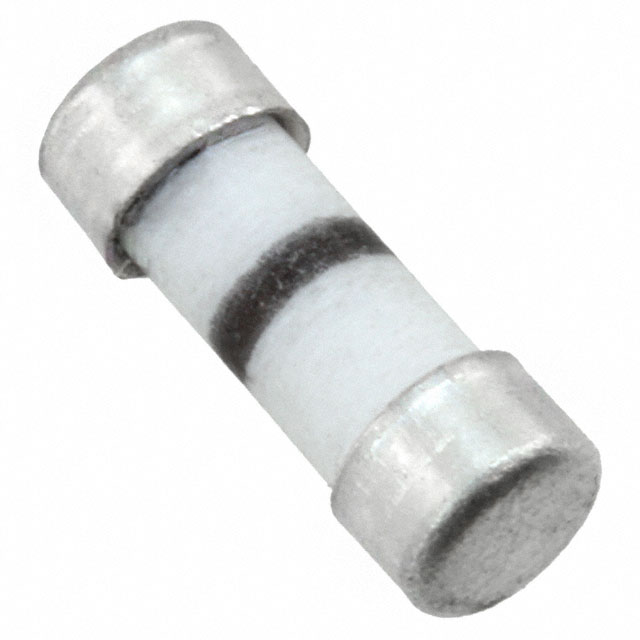

C308F Series
Cartridge Fuses 3x8.4FA Ceramic fuse with lead, 63mA
Manufacturer: Eaton - Electronics Division
Catalog
Cartridge Fuses 3x8.4FA Ceramic fuse with lead, 63mA
Beta
⌘K
Cartridge Fuses 3x8.4FA Ceramic fuse with lead, 63mA
Cartridge Fuses 3x8.4FA Ceramic fuse with lead, 63mA
Cartridge Fuses 3x8.4FA Ceramic fuse with lead, 63mA
| Part | DC Cold Resistance | Melting I˛t | Fuse Type | Response Time | Features | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Applications | Voltage Rating - DC | Melting I²t | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 0.71 Ohms | 0.0053 | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard | Surface Mount | -55 C | 125 °C | 250 VAC | 0.25 A | 4 kA | Hazardous Locations | 250 V | |||||
Eaton - Electronics Division | 1.01 Ohms | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard | Surface Mount | -55 C | 125 °C | 250 VAC | 0.2 A | 4 kA | Hazardous Locations | 250 V | 0.0024 | |||||
 Eaton - Electronics Division | 2.2 Ohms | 0.00134 | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard (Axial) | Through Hole | -55 C | 125 °C | 250 VAC | 0.125 Amps | 4 kA | Hazardous Locations | 250 V | 3.14 mm | 0.124 in | 0.343 in | 8.7 mm | |
Eaton - Electronics Division | 5.1 Ohms | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard (Axial) | Through Hole | -55 C | 125 °C | 250 VAC | 80 mA | 4 kA | Hazardous Locations | 250 V | 0.00018 | 3.14 mm | 0.124 in | 0.343 in | 8.7 mm | |
 Eaton - Electronics Division | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard | Surface Mount | -55 C | 125 °C | 250 VAC | 63 mA | 4 kA | Hazardous Locations | 250 V | |||||||
Eaton - Electronics Division | 9.4 Ohms | 0.0001 | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard (Axial) | Through Hole | -55 C | 125 °C | 250 VAC | 50 mA | 4 kA | Hazardous Locations | 250 V | 3.14 mm | 0.124 in | 0.343 in | 8.7 mm | |
Eaton - Electronics Division | 0.71 Ohms | 0.0053 | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard (Axial) | Through Hole | -55 C | 125 °C | 250 VAC | 0.25 A | 4 kA | Hazardous Locations | 250 V | 3.14 mm | 0.124 in | 0.343 in | 8.7 mm | |
 Eaton - Electronics Division | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard (Axial) | Through Hole | -55 C | 125 °C | 250 VAC | 63 mA | 4 kA | Hazardous Locations | 250 V | |||||||
Eaton - Electronics Division | 8.8 Ohms | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard | Surface Mount | -55 C | 125 °C | 250 VAC | 63 mA | 4 kA | Hazardous Locations | 250 V | 0.00012 | |||||
Eaton - Electronics Division | 2.05 Ohms | Cartridge Ceramic | Fast Blow | Intrinsically Safe | Cartridge Non-Standard | Surface Mount | -55 C | 125 °C | 250 VAC | 160 mA | 4 kA | Hazardous Locations | 250 V | 0.00166 |
