RVS2 Series

Catalog

RING TERMINALS, PVC INSULATED, 1

Part	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Color	Terminal Type	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Insulation	Contact Material	Contact Finish	Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]

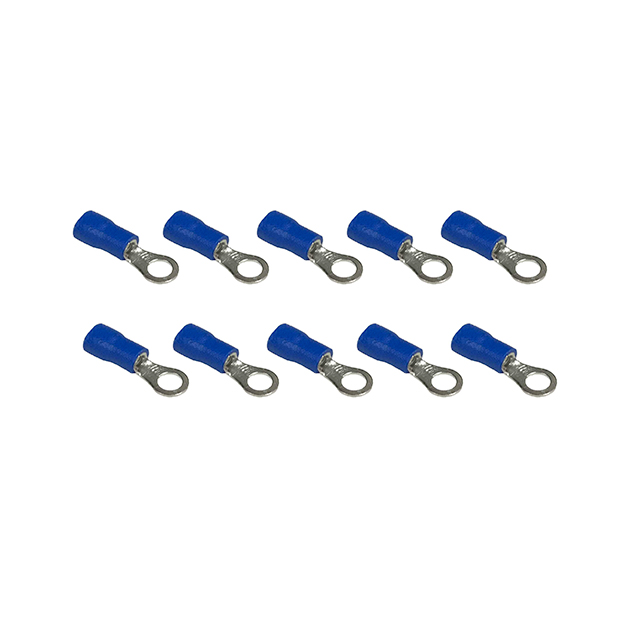

Remington Industries RVS2-4-10	Poly-Vinyl Chloride (PVC)	14 AWG	16 AWG	Free Hanging (In-Line)	Blue	Circular	17.81 mm	0.701 in	8 Stud	Insulated	Copper	Tin	Crimp	0.26 in	6.6 mm	0.81 mm	0.032 in

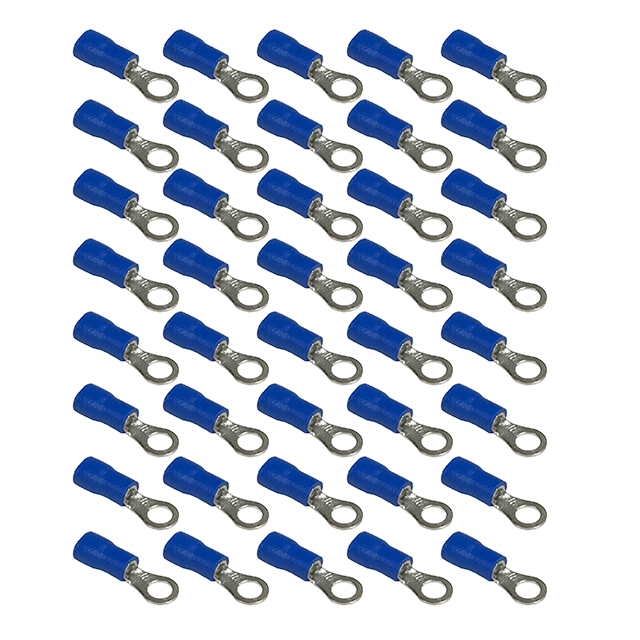

Remington Industries RVS2-3.5-100	Poly-Vinyl Chloride (PVC)	14 AWG	16 AWG	Free Hanging (In-Line)	Blue	Circular	17.81 mm	0.701 in	6 Stud	Insulated	Copper	Tin	Crimp	0.217 in	5.5 mm	0.81 mm	0.032 in
Remington Industries RVS2-5-100	Poly-Vinyl Chloride (PVC)	14 AWG	16 AWG	Free Hanging (In-Line)	Blue	Circular	21.79 mm	0.858 in	10 Stud	Insulated	Copper	Tin	Crimp			0.81 mm	0.032 in	8.51 mm	0.335 in
Remington Industries RVS2-3.5-10	Poly-Vinyl Chloride (PVC)	14 AWG	16 AWG	Free Hanging (In-Line)	Blue	Circular	17.81 mm	0.701 in	6 Stud	Insulated	Copper	Tin	Crimp	0.217 in	5.5 mm	0.81 mm	0.032 in
Remington Industries RVS2-5-10	Poly-Vinyl Chloride (PVC)	14 AWG	16 AWG	Free Hanging (In-Line)	Blue	Circular	21.79 mm	0.858 in	10 Stud	Insulated	Copper	Tin	Crimp			0.81 mm	0.032 in	8.51 mm	0.335 in
Remington Industries RVS2-4-100	Poly-Vinyl Chloride (PVC)	14 AWG	16 AWG	Free Hanging (In-Line)	Blue	Circular	17.81 mm	0.701 in	8 Stud	Insulated	Copper	Tin	Crimp	0.26 in	6.6 mm	0.81 mm	0.032 in
