V3-100 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

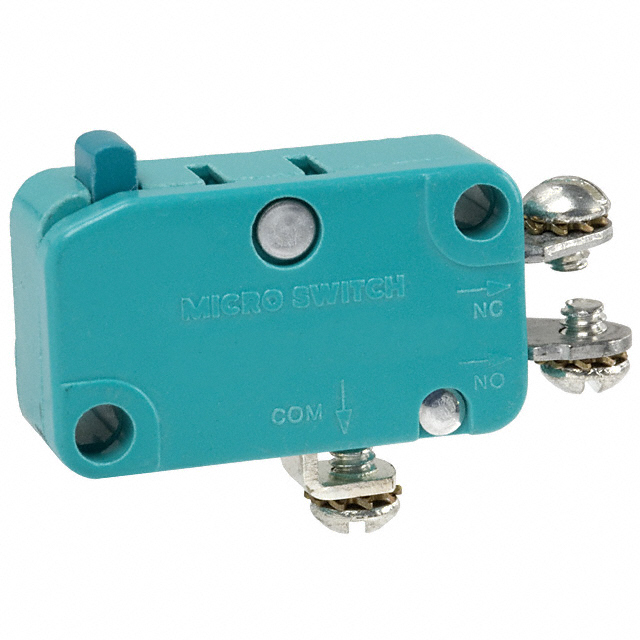

MICROSWITCH, STANDARD, PIN PLUNGER, SPDT, SCREW, 10 A
| Part | Release Force | Termination Style | Voltage Rating - DC | Operating Force [Max] | Operating Force [Min] | Electrical Life | Mounting Type | Voltage Rating - AC | Pretravel | Pretravel | Current Rating (Amps) | Mechanical Life | Differential Travel | Differential Travel | Actuator Type | Circuit | Operating Position | Operating Position | Overtravel [custom] | Overtravel [custom] | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 113 gf | Screw Terminal | 28 V | 397 gf | 170 gf | 25000 Steps | Chassis Mount | 115 V | 1.2 mm | 0.047 in | 10 A | 25000 Steps | 0.016 in | 0.4 mm | Round (Pin Plunger) | SPDT | 14.7 mm | 0.579 in | 0.04 " | 1 mm | On-Mom |
