MPQ3367 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

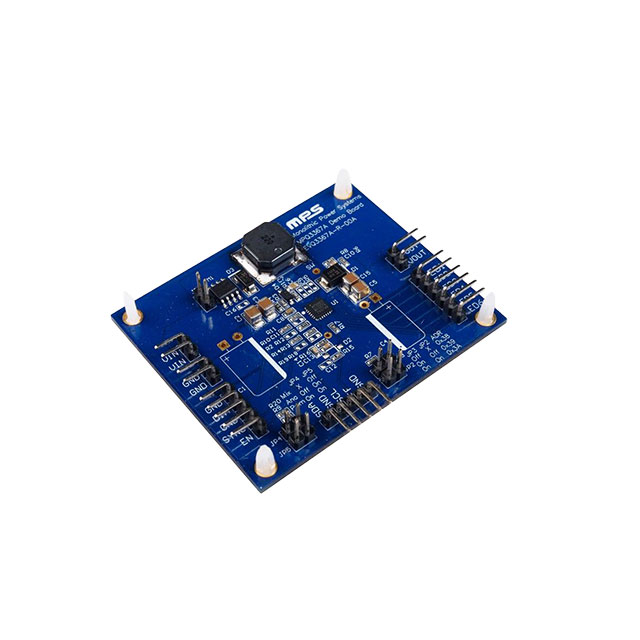

LED LIGHTING DEVELOPMENT TOOLS EVALUATION BOARD FOR MPQ3367A-AEC1
| Part | Supplied Contents | Outputs and Type | Utilized IC / Part | Voltage - Output | Current - Output / Channel | Features | Contents | Voltage - Input [Min] | Voltage - Input [Max] | Dimming | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Internal Switch(s) | Mounting Type | Topology | Number of Outputs | Voltage - Supply (Min) [Min] | Grade | Type | Frequency [Max] | Frequency [Min] | Voltage - Supply (Max) [Max] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Board(s) | 6 Non-Isolated Outputs | MPQ3367A | 50 V | 150 mA | Dimmable | Board(s) | 3.5 V | 36 V | ||||||||||||||||||

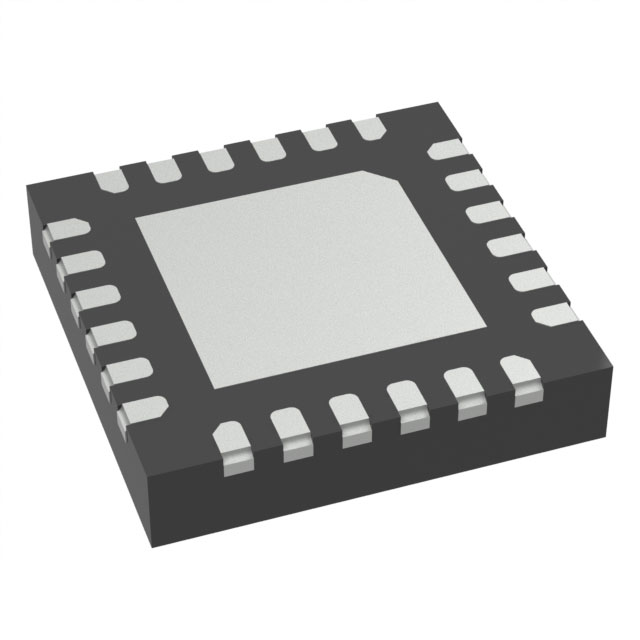

 Monolithic Power Systems Inc. | 50 V | 150 mA | Analog I2C PWM | 4 | 24-QFN-WF | 4 | Surface Mount Wettable Flank | Step-Up (Boost) | 6 | 3.5 V | Automotive | DC DC Regulator | 2.42 MHz | 340 kHz | 36 V | Backlight | -40 C | 125 °C | 24-VFQFN Exposed Pad | ||||||||
 Monolithic Power Systems Inc. | 50 V | 150 mA | Analog I2C PWM | 24-QFN (4x4) | Surface Mount | Step-Up (Boost) | 6 | 3.5 V | Automotive | DC DC Regulator | 2.42 MHz | 340 kHz | 36 V | Backlight | -40 C | 125 °C | 24-VFQFN Exposed Pad | ||||||||||
 Monolithic Power Systems Inc. | 50 V | 150 mA | Analog I2C PWM | 24-QFN (4x4) | Surface Mount | Step-Up (Boost) | 6 | 3.5 V | Automotive | DC DC Regulator | 2.42 MHz | 340 kHz | 36 V | Backlight | -40 C | 125 °C | 24-VFQFN Exposed Pad | ||||||||||
Monolithic Power Systems Inc. | 50 V | 150 mA | Analog I2C PWM | 4 | 24-QFN-WF | 4 | Surface Mount Wettable Flank | Step-Up (Boost) | 6 | 3.5 V | Automotive | DC DC Regulator | 2.42 MHz | 340 kHz | 36 V | Backlight | -40 C | 125 °C | 24-VFQFN Exposed Pad |
