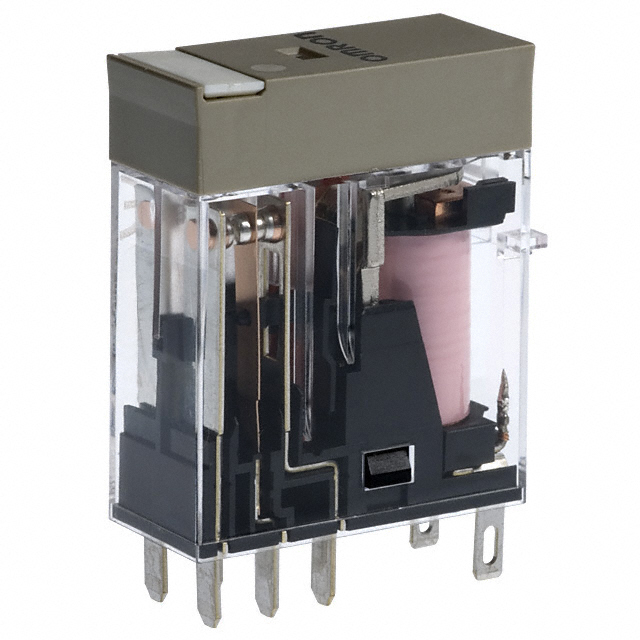

G2R-2-S Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

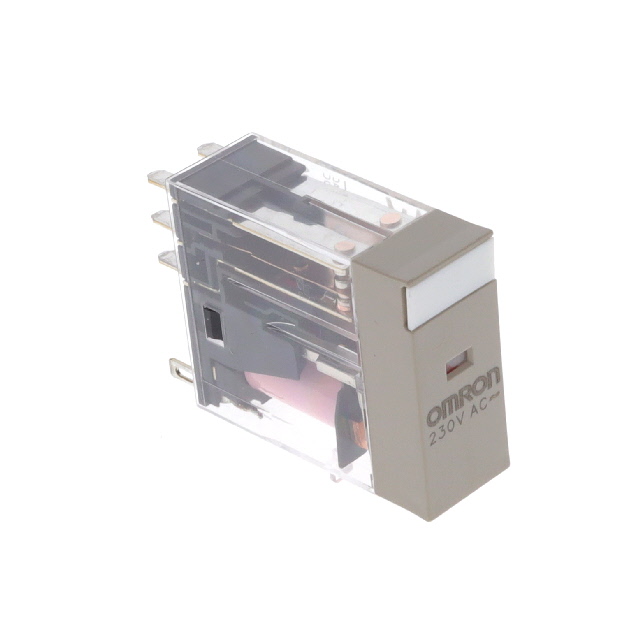

RELAY GEN PURPOSE DPDT 5A 230V
| Part | Switching Voltage | Termination Style | Must Release Voltage | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Relay Type | Contact Rating (Current) | Operate Time | Release Time | Coil Voltage | Load - Max Switching | Coil Current | Contact Form | Coil Type | Approval Agency | Features | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 69 VAC | 184 VAC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 15 ms | 230 VAC | 625 W 1900 VA | 3.8 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | ||
 Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 36 VAC | 96 VAC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 15 ms | 120 VAC | 625 W 1900 VA | 7.5 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Lighted Indicator | 6.5 kOhms |
Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 1.8 VDC | 8.4 VDC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 20 ms | 12 VDC | 625 W 1900 VA | 43.2 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Diode Lighted Indicator Test Button | 278 Ohms |
Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 3.6 VDC | 16.8 VDC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 20 ms | 24 VDC | 625 W 1900 VA | 21.6 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Diode | |
Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 3.6 VAC | 9.6 VAC/DC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 15 ms | 12 VAC/DC | 625 W 1900 VA | 75 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Lighted Indicator | 160 Ohms |
Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 3.6 VDC | 16.8 VDC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 10 ms | 24 VDC | 625 W 1900 VA | 21.6 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | ||
 Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 69 VAC | 184 VAC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 15 ms | 230 VAC | 625 W 1900 VA | 3.8 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Lighted Indicator | |
Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 0.9 VDC | 4.2 VDC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 20 ms | 625 W 1900 VA | 87 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Diode | 69 Ohms | |
Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 3.6 VDC | 16.8 VDC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 20 ms | 24 VDC | 625 W 1900 VA | 21.6 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Diode Lighted Indicator | |
Omron Electronics Inc-EMC Div | 125 VDC 380 VAC | Plug In | 7.2 VAC | 19.2 VAC | -40 °C | 70 °C | Socketable | General Purpose | 5 A | 15 ms | 15 ms | 24 VAC | 625 W 1900 VA | 37.5 mA | DPDT (2 Form C) | Non Latching | CE CSA LR UR VDE | Lighted Indicator | 253 Ohms |
