G7Z-3A1B Series

Catalog

RELAY GEN PURPOSE 4PST 40A 12V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Contact Rating (Current)	Mounting Type	Must Operate Voltage	Operate Time	Contact Material	Release Time	Coil Current	Must Release Voltage	Coil Voltage	Switching Voltage	Coil Power	Contact Form
Omron Electronics Inc-EMC Div G7Z-3A1B-02Z-R DC12V	-25 °C	60 °C	Screw Terminal	40 A	Chassis Mount	9 VDC	50 ms	Silver Alloy	50 ms	308 mA	1.2 VDC	12 VDC	480 VAC	3.7 W	4PST-3NO/1NC (3 Form A 1 Form B)

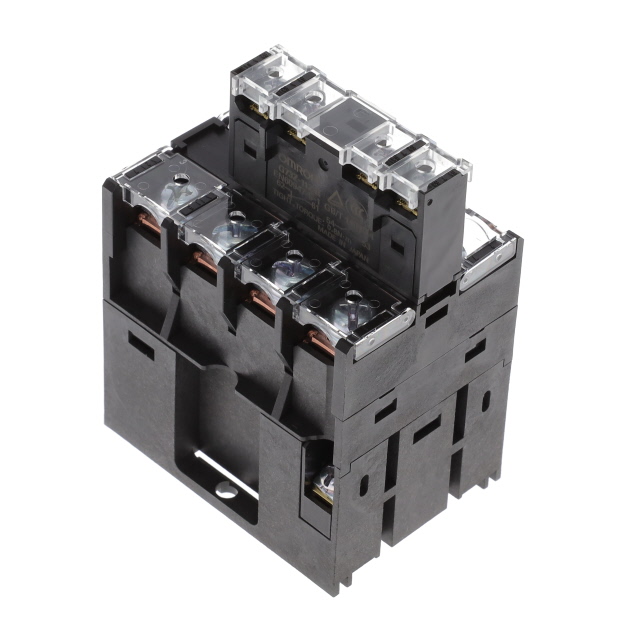

Omron Electronics Inc-EMC Div G7Z-3A1B-11Z-R DC24V	-25 °C	60 °C	Screw Terminal	40 A	Chassis Mount	18 VDC	50 ms	Silver Alloy	50 ms	154 mA	2.4 VDC	24 VDC	480 VAC	3.7 W	4PST-3NO/1NC (3 Form A 1 Form B)

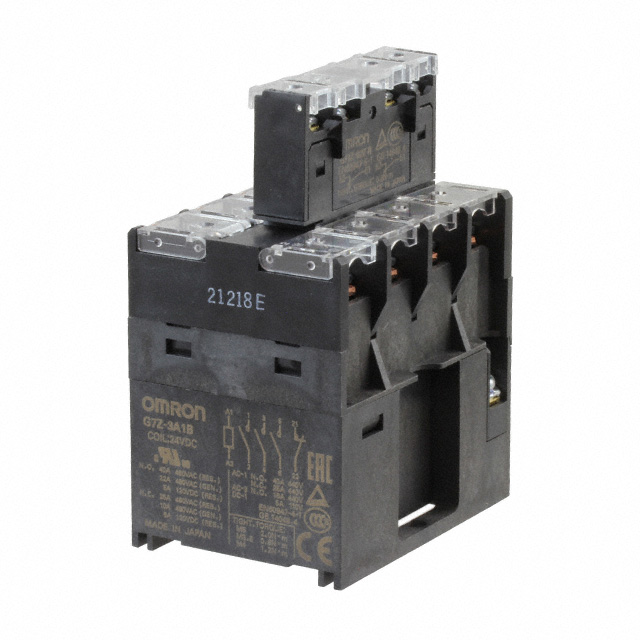

Omron Electronics Inc-EMC Div G7Z-3A1B-02Z-R DC24V	-25 °C	60 °C	Screw Terminal	40 A	Chassis Mount	18 VDC	50 ms	Silver Alloy	50 ms	154 mA	2.4 VDC	24 VDC	480 VAC	3.7 W	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7Z-3A1B-20Z-R-B DC24V	-25 °C	60 °C	Screw Terminal	40 A	Chassis Mount	18 VDC	50 ms	Silver Alloy	50 ms	154 mA	2.4 VDC	24 VDC	480 VAC	3.7 W	4PST-3NO/1NC (3 Form A 1 Form B)
Omron Electronics Inc-EMC Div G7Z-3A1B-11Z-R-B DC24V	-25 °C	60 °C	Screw Terminal	40 A	Chassis Mount	18 VDC	50 ms	Silver Alloy	50 ms	154 mA	2.4 VDC	24 VDC	480 VAC	3.7 W	4PST-3NO/1NC (3 Form A 1 Form B)
