GW JTLPS2.EM Series

Catalog

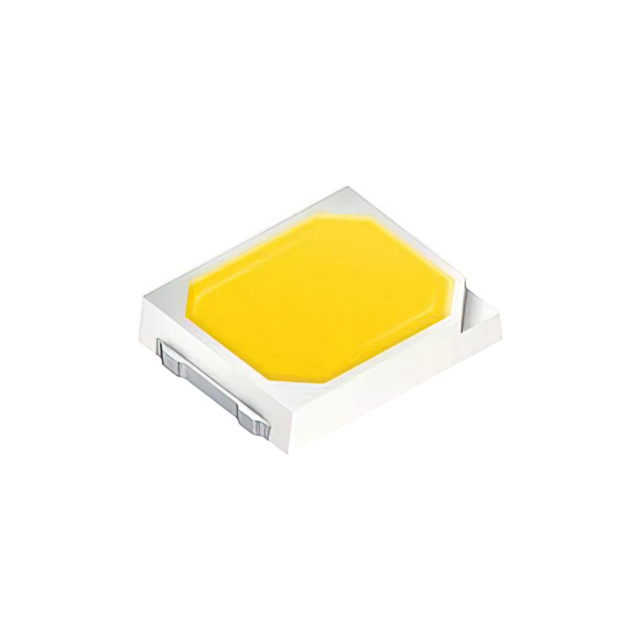

LED DURIS E2835 WHITE 5700K 2835

Part	Thermal Resistance of Package	Package / Case	Viewing Angle	Supplier Device Package	Current - Test	Color	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)	CRI (Color Rendering Index)	Current - Max [Max]	Mounting Type	Flux @ 25°C, Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Package / Case
ams-OSRAM USA INC. GW JTLPS2.EM-KKKM-XX52-1-150-1-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Cool White	153 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	70 lm	5700 K	3.05 V
ams-OSRAM USA INC. GW JTLPS2.EM-KKKM-XX53-1-150-1-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Cool White	153 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	70 lm	5000 K	3.05 V
ams-OSRAM USA INC. GW JTLPS2.EM-JNKL-A636-1-150-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Warm White	144 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	66 lm	3500 K	3.05 V	60 lm	72 lm
ams-OSRAM USA INC. GW JTLPS2.EM-KKKM-XX53-1-150-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Cool White	153 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	70 lm	5000 K	3.05 V
ams-OSRAM USA INC. GW JTLPS2.EM-JNKL-XX56-1-150-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Warm White	144 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	66 lm	3500 K	3.05 V	60 lm	72 lm
ams-OSRAM USA INC. GW JTLPS2.EM-JLJN-XX510-1-150-1-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Warm White	127 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	58 lm	2200 K	3.05 V
ams-OSRAM USA INC. GW JTLPS2.EM-AFAH-XX57-L2M2-120-R33-SA	15 °C/W	1411	120 °	1411	150 mA	Warm White		0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount		3000 K	3.05 V			3528 Metric
ams-OSRAM USA INC. GW JTLPS2.EM-JMKK-A737-1-150-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Warm White	136 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount		3000 K	3.05 V	56 lm	68 lm
ams-OSRAM USA INC. GW JTLPS2.EM-JLJN-A10310-1-150-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Warm White	127 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	58 lm	2200 K	3.05 V
ams-OSRAM USA INC. GW JTLPS2.EM-KKKM-XX51-1-150-1-R33	15 °C/W	1113 (2835 Metric)	120 °	2835	150 mA	Cool White	153 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 "	0.031 in	0.8 mm	80	250 mA	Surface Mount	70 lm	6500 K	3.05 V
