2221860 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN D-SUB HD HOUSING PLUG 15POS
| Part | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Contact Type | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Mounting Type | Number of Rows | Connector Type | Note | Flange Feature | Ingress Protection | Connector Style | Current Rating (Amps) | Shell Size, Connector Layout [x] | Termination | Contact Material | Features | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | DE E | 1 | High Density | 15 | Signal | Steel | Cadmium Plated | Free Hanging (In-Line) | 3 | Plug for Male Contacts | Contacts Not Included | Housing/Shell (Unthreaded) | IP67 - Dust Tight Waterproof | D-Sub High Density | |||||||||
TE Connectivity Aerospace, Defense and Marine | B DB | 44 | Signal | Steel | Cadmium Plated | Free Hanging (In-Line) | 3 | Male Pins Plug | Housing/Shell (Unthreaded) | IP67 - Dust Tight Waterproof | D-Sub High Density | 5 A | 3 | Crimp | Copper Alloy | Grommet | Gold | -55 °C | 125 °C | Polyester Glass Filled | |||

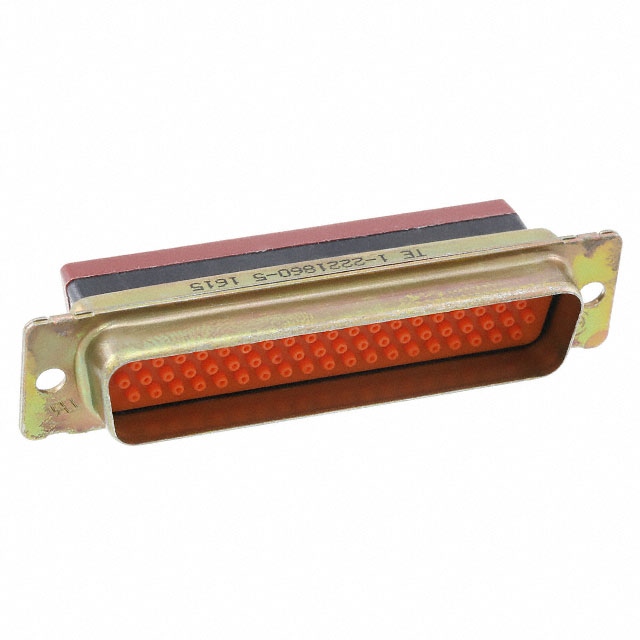

 TE Connectivity Aerospace, Defense and Marine | 78 | Signal | Steel | Cadmium Plated | Free Hanging (In-Line) | Plug for Male Contacts | Contacts Not Included | Housing/Shell (Unthreaded) | IP67 - Dust Tight Waterproof | D-Sub High Density |
