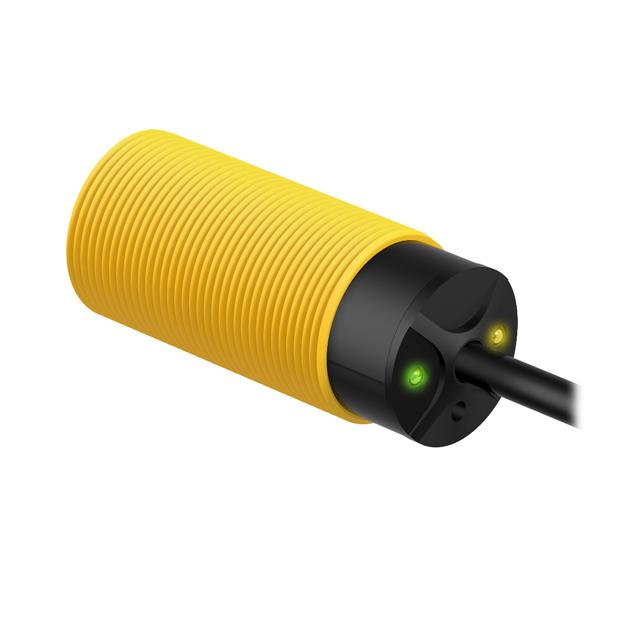

S30SP6 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
RANGE: 200 MM; INPUT: 10-30V DC
| Part | Sensing Distance | Sensing Distance | Voltage - Supply [Min] | Voltage - Supply [Max] | Ingress Protection | Light Source | Response Time | Output Configuration | Connection Method | Sensing Method | Operating Temperature [Max] | Operating Temperature [Min] | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 200 mm | 7.874 in | 10 VDC | 30 VDC | ||||||||||
 BANNER ENGINEERING | 40 cm | 15.748 in | 10 VDC | 30 VDC | IP69K NEMA 6P | Infrared LED | 3 ms | PNP - Dark-ON/Light-ON | Connector | Background Suppression | 70 °C | -40 C | ||
BANNER ENGINEERING | 200 mm | 7.874 in | 10 VDC | 30 VDC | IP69K NEMA 6P | Infrared LED | 3 ms | PNP - Dark-ON/Light-ON | Connector | Background Suppression | 70 °C | -40 C | ||
BANNER ENGINEERING | 60 cm | 23.622 " | 10 VDC | 30 VDC | IEC IEC IP67 IP67 NEMA 6P | Infrared | 3 ms | PNP - Dark-ON/Light-ON - Selectable | Cable | Background Suppression | 70 °C | -40 C | 78.74 " | 2 m |
