846-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K

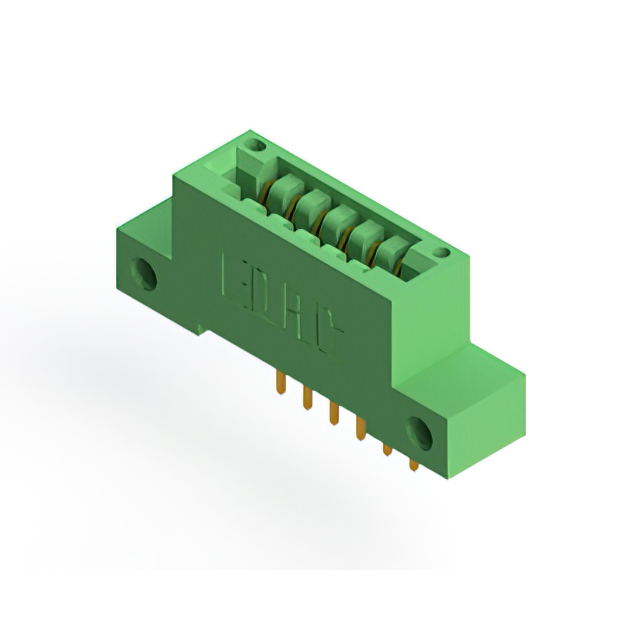

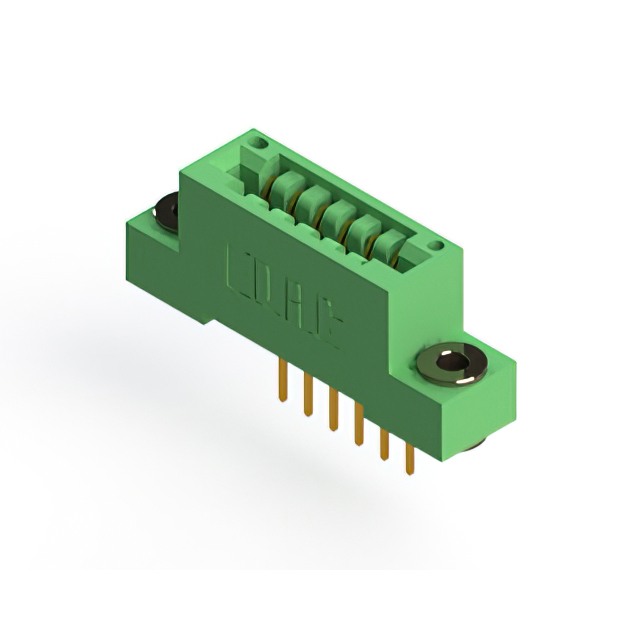

CONN EDGE SGL FMALE 6POS 0.125
| Part | Termination Rows | Material - Insulation | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Contact Type | Number of Rows | Termination | Color | Contact Finish | Number of Positions/Bay/Row | Read Out | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Pitch | Pitch | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Right Angle Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | 3.25 mm | 0.128 " | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | 3.96 mm | 0.156 " | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Wire Wrap | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | 2.95 mm | 0.116 " | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | 3.25 mm | 0.128 " | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Wire Wrap | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Right Angle Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Non Specified - Single Edge | Cantilever | 1 | Solder | Green | Gold | 6 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 3.18 mm | 0.125 in | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening |
