TLHB-V88Y Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

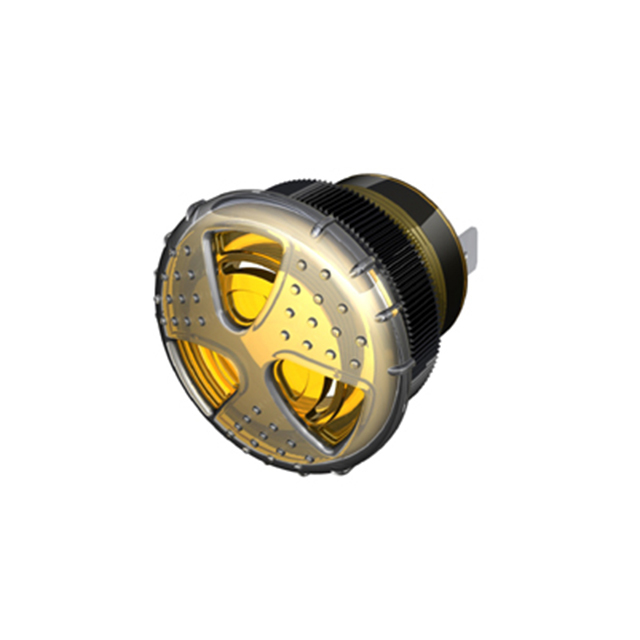

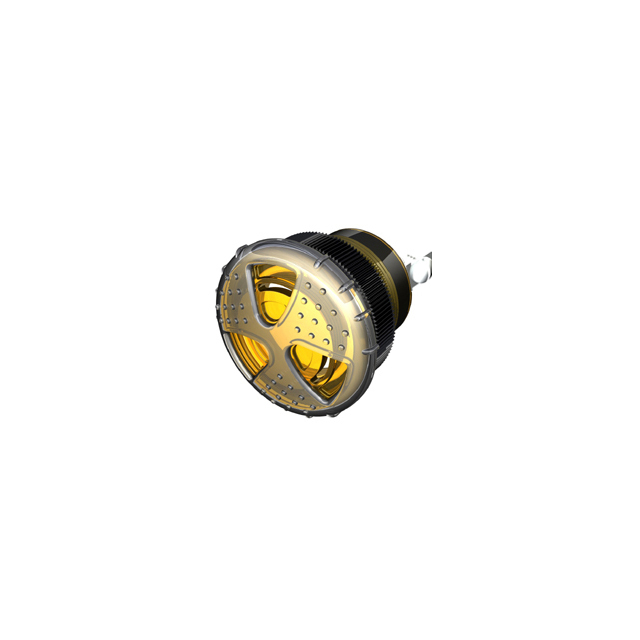

BUZZER 35.81MM PNL MNT
| Part | Driver Circuitry | Input Type | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Voltage Range [Max] | Voltage Range [Min] | Operating Mode | Port Location | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency | Ingress Protection | Sound Pressure Level (SPL) | Approval Agency | Termination | Termination | Termination | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Indicator Internally Driven | DC | 50 mA | 110 mA | 30 V | 9 V | Fast Pulse | Top | 1.25 " | 31.75 mm | 2.9 kHz | IP68 - Dust Tight Waterproof | 103 dB | UL UR | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 1.41 in | 35.81 mm | Panel Mount |
Floyd Bell Inc | Indicator Internally Driven | DC | 50 mA | 110 mA | 30 V | 9 V | Pulse Slow | Top | 1.25 " | 31.75 mm | 2.9 kHz | IP68 - Dust Tight Waterproof | 103 dB | UL UR | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 1.41 in | 35.81 mm | Panel Mount |
 Floyd Bell Inc | Indicator Internally Driven | DC | 50 mA | 110 mA | 30 V | 9 V | Fast Pulse | Top | 1.25 " | 31.75 mm | 2.9 kHz | IP68 - Dust Tight Waterproof | 103 dB | UL UR | 0.25 " | Quick Connect Tab | 6.35 mm | 1.41 in | 35.81 mm | Panel Mount |
 Floyd Bell Inc | Indicator Internally Driven | DC | 50 mA | 110 mA | 30 V | 9 V | Pulse Slow | Top | 1.25 " | 31.75 mm | 2.9 kHz | IP68 - Dust Tight Waterproof | 103 dB | UL UR | 0.25 " | Quick Connect Tab | 6.35 mm | 1.41 in | 35.81 mm | Panel Mount |
