JMSCD Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

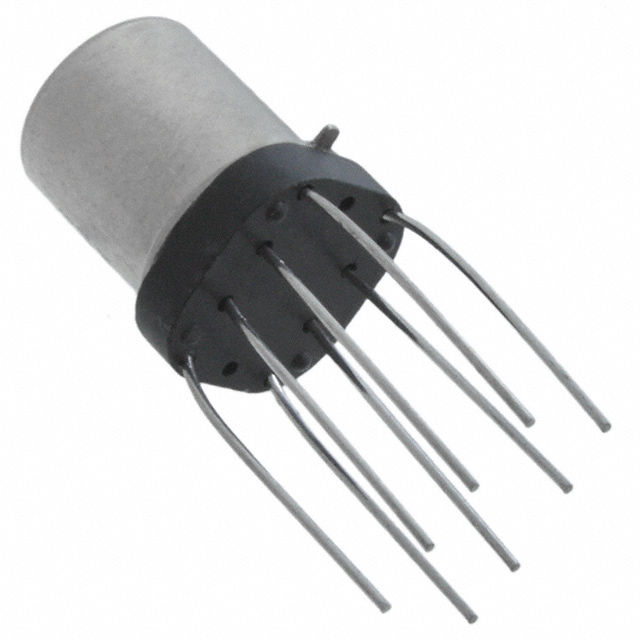

JMSCD-26XP = M39016/16-036P
| Part | Relay Type | Coil Type | Switching Voltage | Contact Rating (Current) | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Voltage | Grade | Release Time | Seal Rating | Termination Style | Mounting Type | Contact Form | Must Release Voltage | Qualification | Operate Time | Features | Coil Current | Load - Max Switching | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC | 1 A | 3.3 kOhms | 125 °C | -65 ░C | 14 VDC | 26.5 VDC | Military | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 1.4 VDC | MIL-R-39016/16 | 4 ms | ||||
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 3.3 Ohms | 125 °C | -65 ░C | 15.2 VDC | 26.5 VDC | Military | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 1.7 VDC | MIL-R-39016/21 | 4 ms | Diode | 8.8 mA | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) |
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 850 Ohms | 125 °C | -65 ░C | 7 VDC | 12 VDC | Military | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 0.64 VDC | MIL-R-39016/16 | 4 ms | Diode | 14.1 mA | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) |
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 64 Ohms | 125 °C | -65 ░C | 2.9 VDC | 5 VDC | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 0.8 VDC | 4 ms | Diode | 78.1 mA | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) | ||
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 3.3 kOhms | 125 °C | -65 ░C | 15.2 VDC | 26.5 VDC | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 1.7 VDC | 4 ms | Diode | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) | |||
 TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 3.3 kOhms | 125 °C | -65 ░C | 14 VDC | 26.5 VDC | Military | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 1.4 VDC | MIL-R-39016/16 | 4 ms | Diode | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) | |
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC | 1 A | 3.3 kOhms | 125 °C | -65 ░C | 14 VDC | 26.5 VDC | Military | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 1.4 VDC | MIL-R-39016/16 | 4 ms | Diode | |||
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 3.3 Ohms | 125 °C | -65 ░C | 15.2 VDC | 26.5 VDC | Military | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 1.7 VDC | MIL-R-39016/21 | 4 ms | Diode | 8.8 mA | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) |
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 200 Ohms | 125 °C | -65 ░C | 3.4 VDC | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 0.28 VDC | 4 ms | Diode | 30 mA | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) | |||
TE Connectivity Aerospace, Defense and Marine | General Purpose | Non Latching | 28 VDC 115 VAC | 1 A | 200 Ohms | 125 °C | -65 ░C | 3.4 VDC | 7.5 ms | Sealed - Hermetically | PC Pin | Through Hole | DPDT (2 Form C) | 0.28 VDC | 4 ms | Diode | 30 mA | 28 W 115 VA | Gold (Au) Silver Palladium (AgPd) |
