0492-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0492-0-15-15-13-14-04-0	-55 C	125 °C	0.119 in	3.02 mm	0.25 Ám	10 Áin	Beryllium Copper	Gold	10.03 mm	0.395 "	1.22 mm	0.064 in	0.048 in	1.63 mm	1.04 mm	0.041 in	2.24 mm	0.088 "	Standard Tail	Press-Fit	2.69 mm	0.106 in	0.2 in	5.08 mm

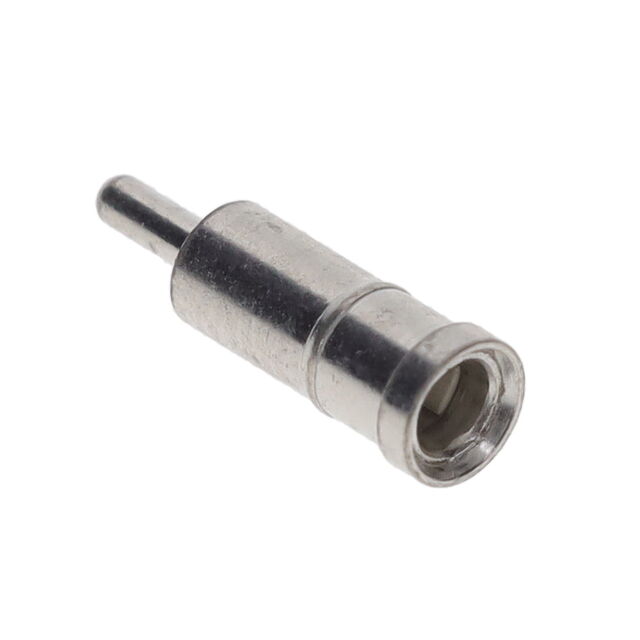

Mill-Max Manufacturing Corp. 0492-0-15-80-13-80-04-0	-55 C	125 °C	0.119 in	3.02 mm	5.08 Ám	200 Áin	Beryllium Copper	Tin	10.03 mm	0.395 "	1.22 mm	0.064 in	0.048 in	1.63 mm	1.04 mm	0.041 in	2.24 mm	0.088 "	Standard Tail	Press-Fit	2.69 mm	0.106 in	0.2 in	5.08 mm
Mill-Max Manufacturing Corp. 0492-0-15-01-13-14-04-0	-55 C	125 °C	0.119 in	3.02 mm	0.25 Ám	10 Áin	Beryllium Copper	Gold	10.03 mm	0.395 "	1.22 mm	0.064 in	0.048 in	1.63 mm	1.04 mm	0.041 in	2.24 mm	0.088 "	Standard Tail	Press-Fit	2.69 mm	0.106 in	0.2 in	5.08 mm
Mill-Max Manufacturing Corp. 0492-0-15-80-13-14-04-0	-55 C	125 °C	0.119 in	3.02 mm	0.25 Ám	10 Áin	Beryllium Copper	Gold	10.03 mm	0.395 "	1.22 mm	0.064 in	0.048 in	1.63 mm	1.04 mm	0.041 in	2.24 mm	0.088 "	Standard Tail	Press-Fit	2.69 mm	0.106 in	0.2 in	5.08 mm
