DAC7811 Series

Catalog

IC DAC 12BIT A-OUT 10VSSOP

Part	Reference Type	Number of Bits	INL/DNL (LSB)	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Supplier Device Package	Architecture	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Package / Case	Package / Case [x]	Package / Case [x]	Output Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Settling Time	Mounting Type	Utilized IC / Part	Number of DAC's	DAC Type	Supplied Contents
Texas Instruments DAC7811IDGSTG4	External	12 bits	±1 (Max)	125 °C	-40 °C	SPI	10-VSSOP	R-2R	5.5 V	2.7 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Current - Unbuffered	2.7 V	5.5 V	200 ns	Surface Mount
Texas Instruments DAC7811IDGSRG4	External	12 bits	±1 (Max)	125 °C	-40 °C	SPI	10-VSSOP	R-2R	5.5 V	2.7 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Current - Unbuffered	2.7 V	5.5 V	200 ns	Surface Mount
Texas Instruments DAC7811IDGSR	External	12 bits	±1 (Max)	125 °C	-40 °C	SPI	10-VSSOP	R-2R	5.5 V	2.7 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Current - Unbuffered	2.7 V	5.5 V	200 ns	Surface Mount
Texas Instruments DAC7811IDGST	External	12 bits	±1 (Max)	125 °C	-40 °C	SPI	10-VSSOP	R-2R	5.5 V	2.7 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Current - Unbuffered	2.7 V	5.5 V	200 ns	Surface Mount

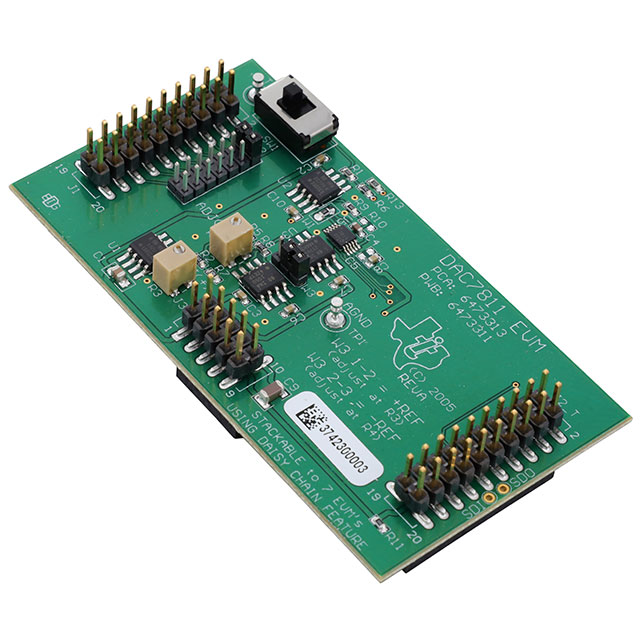

Texas Instruments DAC7811EVM		12 bits				DSP MICROWIRE™ QSPI™ Serial SPI™											200 ns		DAC7811	1	Current	Board(s)
