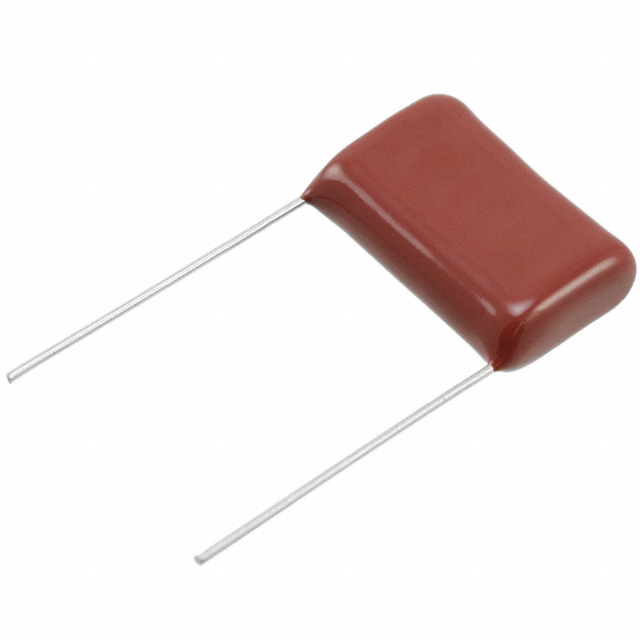

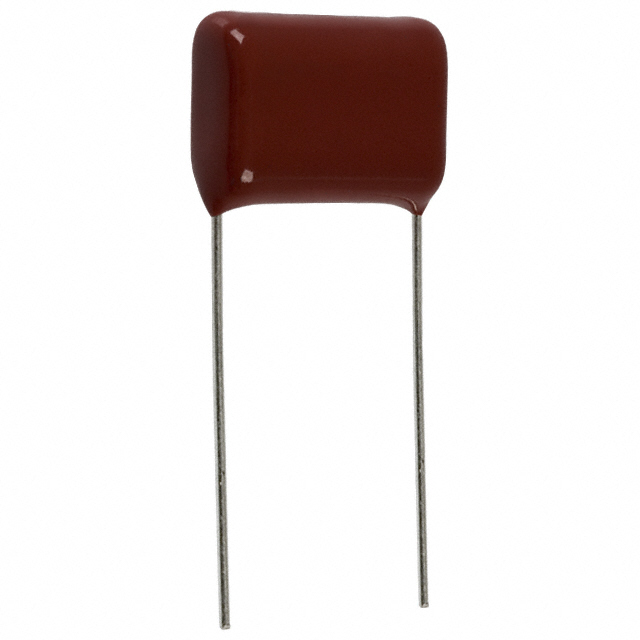

ECQ-E2225 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 2.2UF 5% 250VDC RADIAL

Part	Capacitance	Tolerance	Package / Case	Applications	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination	Lead Spacing	Lead Spacing	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]
Panasonic Electronic Components ECQ-E2225JF	2.2 µF	5 %	Radial	General Purpose	250 V	0.335 in	26 mm	8.5 mm	1.024 in	PC Pins	0.886 in	22.5 mm	Polyester Metallized	0.681 in	17.3 mm	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2225RKB	2.2 µF	10 %	Radial	General Purpose	250 V	8.4 mm			20.8 mm	PC Pins	0.689 in	17.5 mm	Polyester Metallized		0.811 in	Through Hole	-40 C	105 ░C	20.6 mm	0.819 "	0.331 in
Panasonic Electronic Components ECQ-E2225KFW	2.2 µF	10 %	Radial	General Purpose	250 V	0.335 in	26 mm	8.5 mm	1.024 in	PC Pins	0.591 in	15 mm	Polyester Metallized	0.839 in	21.3 mm	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2225JFW	2.2 µF	5 %	Radial	General Purpose	250 V	0.335 in	26 mm	8.5 mm	1.024 in	PC Pins	0.591 in	15 mm	Polyester Metallized	0.839 in	21.3 mm	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2225JFB	2.2 µF	5 %	Radial	General Purpose	250 V	0.335 in	26 mm	8.5 mm	1.024 in	PC Pins	0.591 in	15 mm	Polyester Metallized	0.839 in	21.3 mm	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2225JFA	2.2 µF	5 %	Radial	General Purpose	250 V					PC Pins			Polyester Metallized			Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2225KFB	2.2 µF	10 %	Radial	General Purpose	250 V	0.335 in	26 mm	8.5 mm	1.024 in	PC Pins	0.591 in	15 mm	Polyester Metallized	0.839 in	21.3 mm	Through Hole	-40 C	105 ░C
