HEDS-9701 Series
Manufacturer: Broadcom Limited
Beta
⌘K
ROTARY ENCODER OPTICAL 256PPR
| Part | Built in Switch | Pulses per Revolution | Encoder Type | Actuator Type | Mounting Type | Termination Style | Output Type | Orientation | Detent | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|

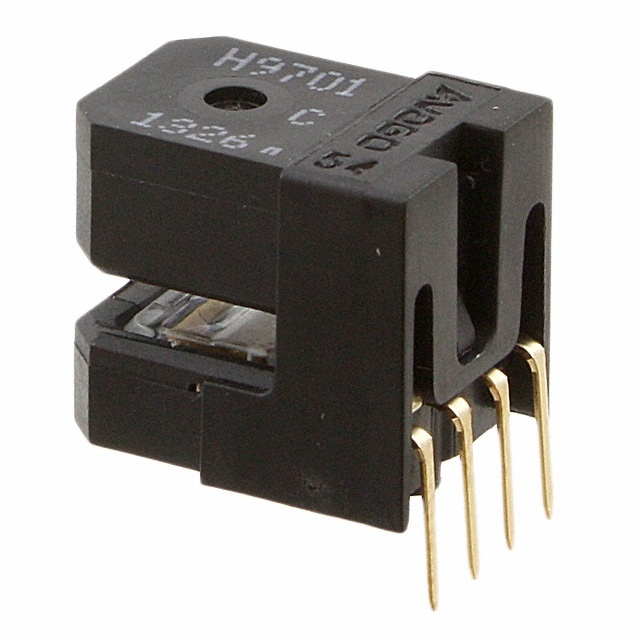

 Broadcom Limited | 256 pulses per revolution | Optical | Codewheel Not Included | Chassis Mount | Terminal Pins | Quadrature (Incremental) | Right Angle | ||||

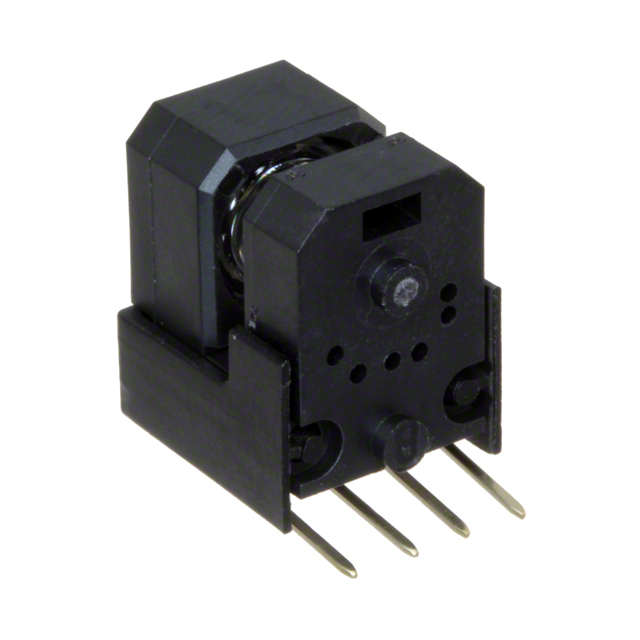

 Broadcom Limited | 100 | Optical | Codewheel Not Included | Chassis Mount | Terminal Pins | Quadrature (Incremental) | Right Angle | ||||

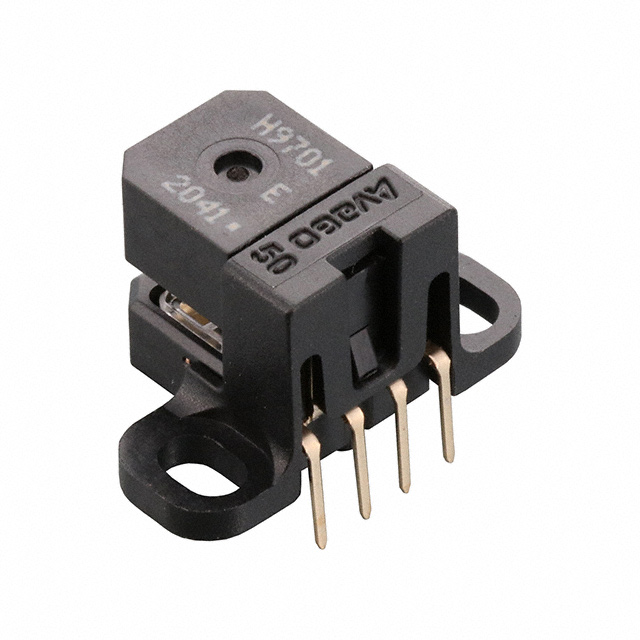

 Broadcom Limited | 200 | Optical | Codewheel Not Included | Chassis Mount Motors | Terminal Pins | Quadrature (Incremental) | Right Angle | 4.5 V | 5.5 V |
