053728 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 4POS 6.5MM

Part	Insulation Material	Style	Contact Finish - Post	Fastening Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Connector Type	Contact Shape	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Current Rating (Amps)	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Contact Type
Molex 0537280461	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Latch Lock	2	4.5 mm	0.177 in	Black	1 µm	39.4 µin	Board Guide	Header	Square	4	-40 °C	105 ░C	Through Hole	Copper Alloy	Shrouded - 4 Wall	1 çm	39.4 çin	Kinked Pin Solder	Varies by Wire Gauge	600 V	0.348 in	8.85 mm	All	6.5 mm	0.256 in	0.63 in	16 mm	0.15 in	3.81 mm	UL94 V-0	Male Pin
Molex 0537280268
Molex 0537280619	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Latch Lock	2	4.5 mm	0.177 in	White	1 µm	39.4 µin	Board Guide	Header	Square	6	-40 °C	105 ░C	Through Hole	Copper Alloy	Shrouded - 4 Wall	1 çm	39.4 çin	Kinked Pin Solder	Varies by Wire Gauge	600 V	0.348 in	8.85 mm	All	6.5 mm	0.256 in	0.63 in	16 mm	0.15 in	3.81 mm	UL94 V-0	Male Pin
Molex 0537280263
Molex 0537280264
Molex 0537280662	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Latch Lock	2	4.5 mm	0.177 in	Red	1 µm	39.4 µin	Board Guide	Header	Square	6	-40 °C	105 ░C	Through Hole	Copper Alloy	Shrouded - 4 Wall	1 çm	39.4 çin	Kinked Pin Solder	Varies by Wire Gauge	600 V	0.348 in	8.85 mm	All	6.5 mm	0.256 in	0.63 in	16 mm	0.15 in	3.81 mm	UL94 V-0	Male Pin

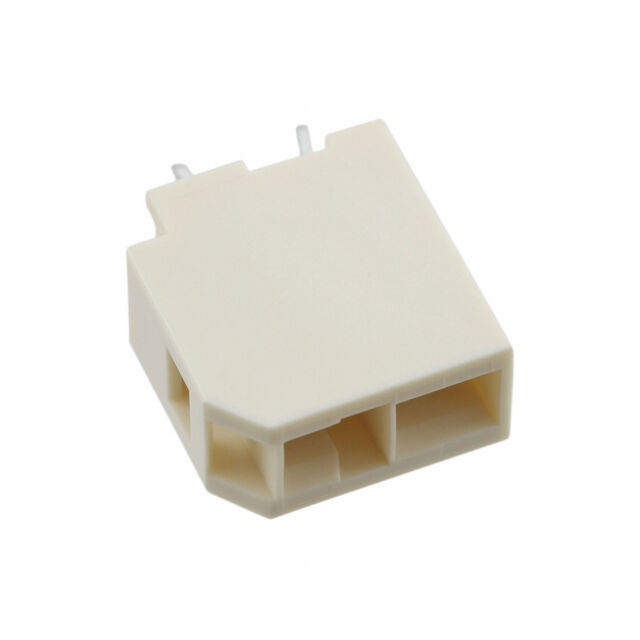

Molex 0537280219	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Latch Lock	2	4.5 mm	0.177 in	White	1 µm	39.4 µin	Board Guide	Header	Square	2	-40 °C	105 ░C	Through Hole	Copper Alloy	Shrouded - 4 Wall	1 çm	39.4 çin	Kinked Pin Solder	Varies by Wire Gauge	600 V	0.348 in	8.85 mm	All			0.63 in	16 mm	0.15 in	3.81 mm	UL94 V-0	Male Pin
