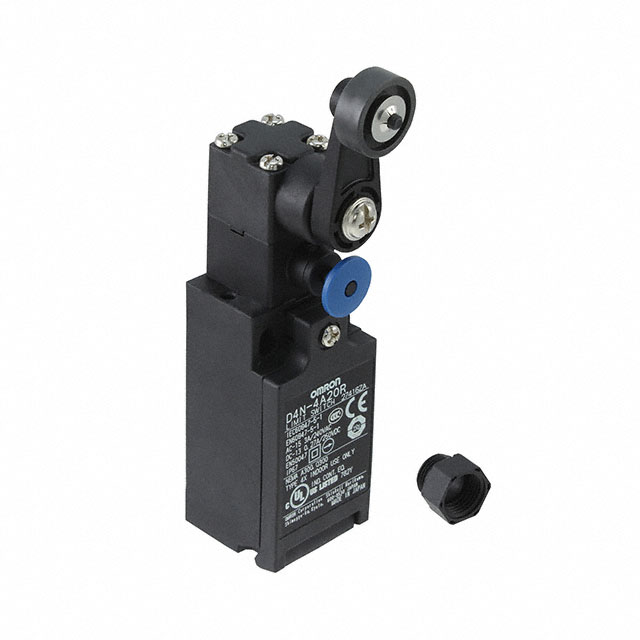

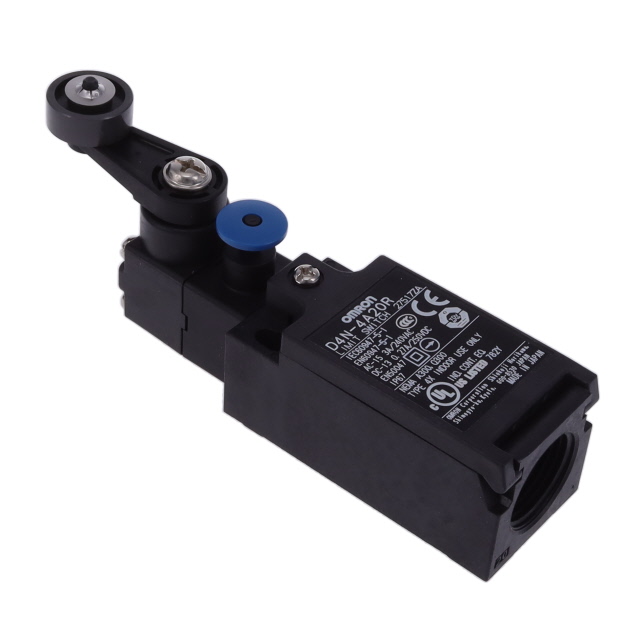

D4N-4A20 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 10A 120V
| Part | Voltage Rating - DC | Mechanical Life | Current Rating (Amps) | Electrical Life | Termination Style | Switch Function | Operating Force | Actuator Type | Voltage Rating - AC | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Pretravel | Ingress Protection | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 125 VDC | 1000000 Cycles | 2.5 A 10 A | 300000 Cycles | Screw Terminal | Off-On On-Off | 653 gf | Lever Roller | 120 V | Resin Lever Resin Roller | Chassis Mount | 70 °C | -30 ░C | 18 ° | IP67 - Dust Tight Waterproof | DPST-NO/NC |
 Omron Electronics Inc-EMC Div | 125 VDC | 1000000 Cycles | 2.5 A 10 A | 300000 Cycles | Screw Terminal | Off-On On-Off | 653 gf | Lever Roller | 120 V | Resin Lever Resin Roller | Chassis Mount | 70 °C | -30 ░C | 18 ° | IP67 - Dust Tight Waterproof | DPST-NO/NC |
Omron Electronics Inc-EMC Div |
