DC37P064 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

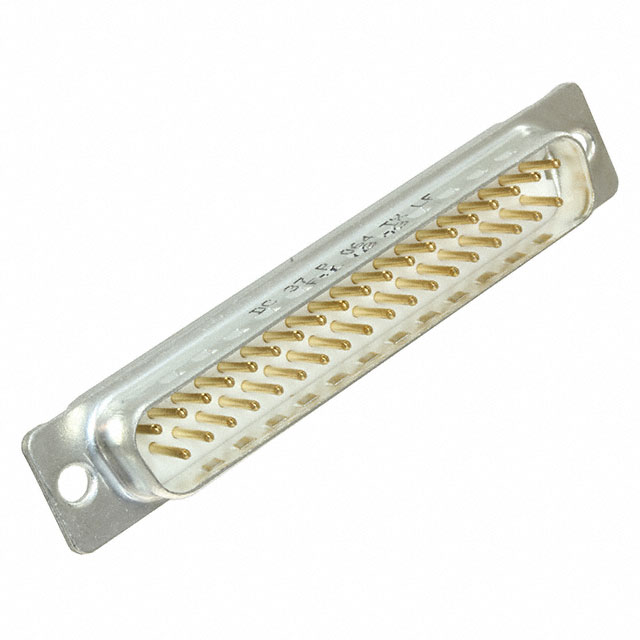

CONN D-SUB PLUG 37POS SLDR CUP
| Part | Mounting Type | Material Flammability Rating | Dielectric Material | Contact Material | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish | Flange Feature | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Features | Contact Type | Voltage Rating | Connector Style | Current Rating (Amps) | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | 4 (DC C) | Flash | Gold | Housing/Shell (Unthreaded) | Male Pins Plug | -55 °C | 125 °C | Natural | 37 | Grounding Indents | Signal | 300 VDC | D-Sub | 5 A | 2 |
Amphenol ICC (FCI) | Free Hanging (In-Line) | Thermoplastic | 4 (DC C) | Flash | Gold | Housing/Shell (Unthreaded) | Male Pins Plug | -55 °C | 125 °C | Natural | 37 | Grounding Indents Shielded | Signal | 300 VDC | D-Sub | 5 A | 2 |
