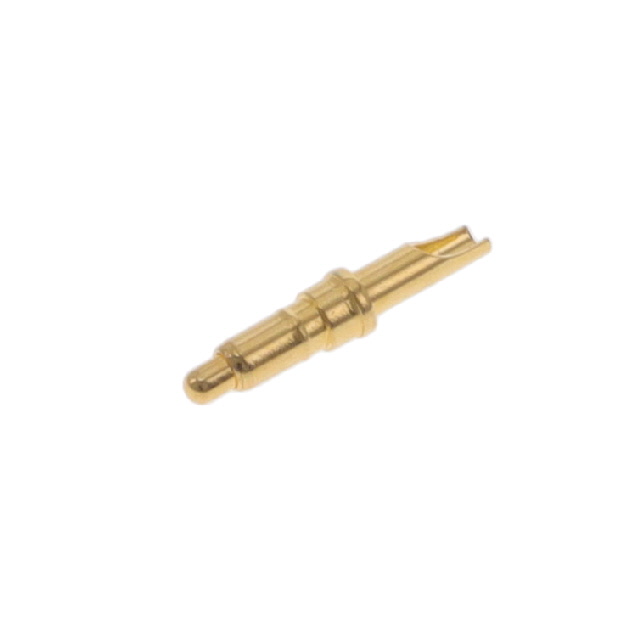

PH-MVS-43 Series
Manufacturer: Adam Tech
Beta
⌘K
CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish | Operating Force - Initial | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material | Contact Type | Mating Cycles | Minimum Working Height | Minimum Working Height | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -55 C | 125 °C | 3 A | Gold | 70 gf | 0.079 in | 2 mm | Brass | Sleeve & Plunger (Pogo Pins) | 1000000 | 4.1 mm | 0.161 in | Solder Cup Through Hole | 1 mm | 0.039 in | 0.177 in | 4.5 mm | 0.217 in | 5.51 mm |
