SFH 320 Series

Catalog

SENSOR PHOTO 980NM TOP VIEW 2LCC

Part	Mounting Type	Viewing Angle	Wavelength	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation	Current - Dark (Id) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
ams-OSRAM USA INC. SFH 320-4-Z	Surface Mount	120 °	980 nm	15 mA	165 mW	2-LCC (J-Lead)	35 V	Top View	50 nA	-40 C	100 °C
ams-OSRAM USA INC. SFH 320 FA-3/4-Z	Surface Mount	120 °	980 nm	15 mA	165 mW	2-LCC (J-Lead)	35 V	Top View	50 nA	-40 C	100 °C

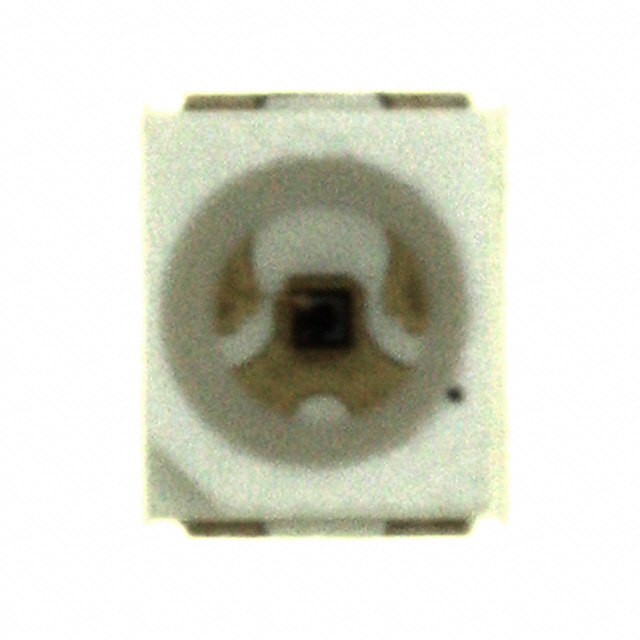

ams-OSRAM USA INC. SFH 320-3/4-Z	Surface Mount	120 °	980 nm	15 mA	165 mW	2-PLCC	35 V	Top View	50 nA	-40 C	100 °C
ams-OSRAM USA INC. SFH 320 FA-4-Z	Surface Mount	120 °	980 nm	15 mA	165 mW	2-LCC (J-Lead)	35 V	Top View	50 nA	-40 C	100 °C

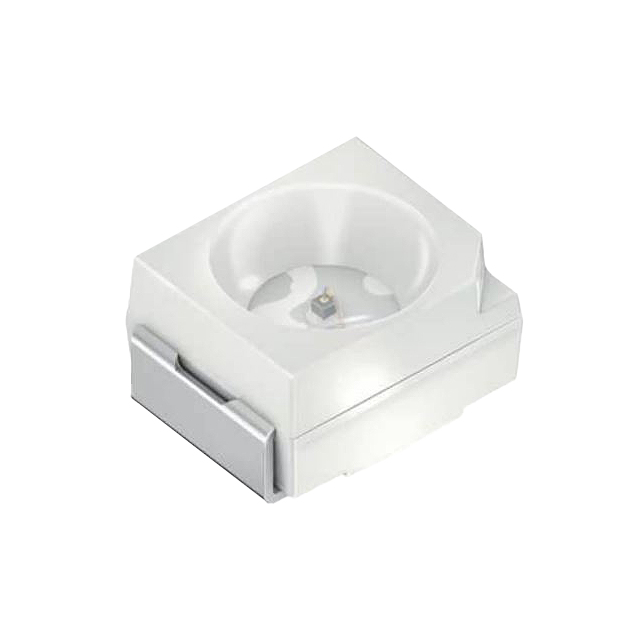

ams-OSRAM USA INC. SFH 320-Z	Surface Mount	120 °	980 nm	15 mA	165 mW	2-LCC (J-Lead)	35 V	Top View	50 nA	-40 C	100 °C
ams-OSRAM USA INC. SFH 320 FA-3-Z	Surface Mount	120 °	980 nm	15 mA	165 mW	2-LCC (J-Lead)	35 V	Top View	50 nA	-40 C	100 °C

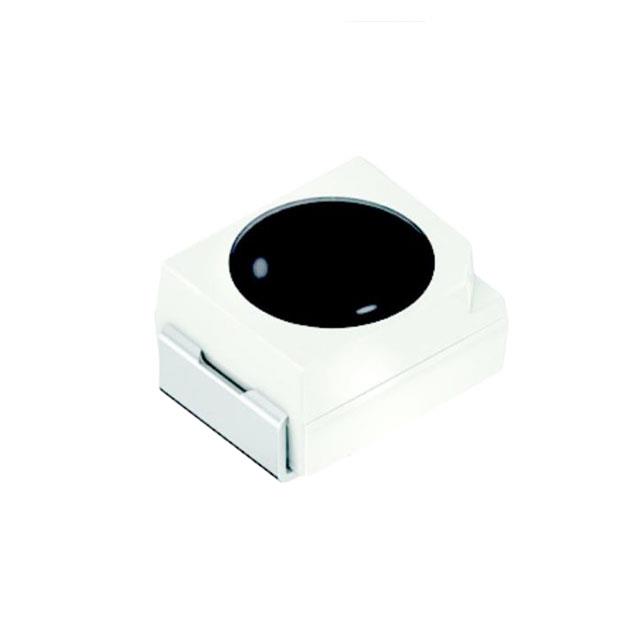

ams-OSRAM USA INC. SFH 320 FA-Z	Surface Mount	120 °	980 nm	15 mA	165 mW	2-LCC (J-Lead)	35 V	Top View	50 nA	-40 C	100 °C
