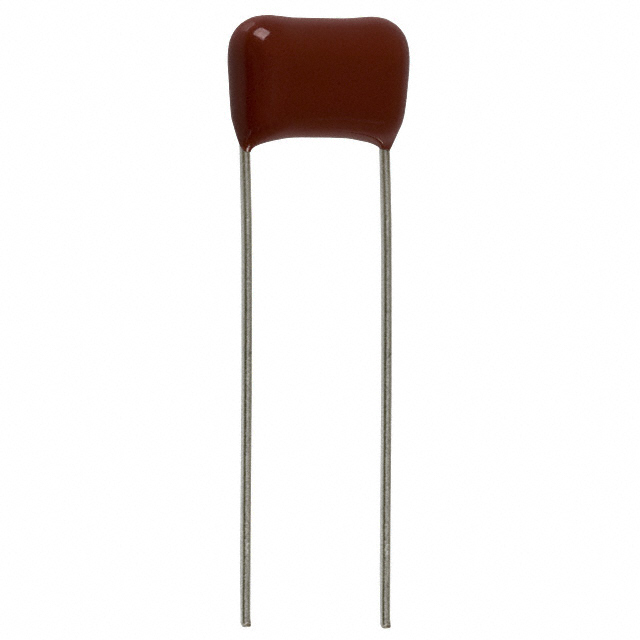

ECQ-E2184 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.18UF 10% 250VDC RAD

Part	Voltage Rating - DC	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Capacitance	Termination	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Lead Spacing	Lead Spacing	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2184KB3	250 V	Radial	14.7 mm	0.579 "	0.18 µF	PC Pins	General Purpose	10.3 mm	5 mm	0.406 in	0.197 "	10 %	Through Hole	0.197 "	5 mm	Polyester Metallized	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2184JFB	250 V	Radial		0.602 in	0.18 µF	PC Pins	General Purpose	12 mm	5 mm	0.472 in	0.197 "	5 %	Through Hole	0.394 in	10 mm	Polyester Metallized	-40 C	105 ░C	15.3 mm
Panasonic Electronic Components ECQ-E2184RKF	250 V	Radial		0.602 in	0.18 µF	PC Pins	General Purpose	12 mm	5 mm	0.472 in	0.197 "	10 %	Through Hole	0.394 in	10 mm	Polyester Metallized	-40 C	105 ░C	15.3 mm

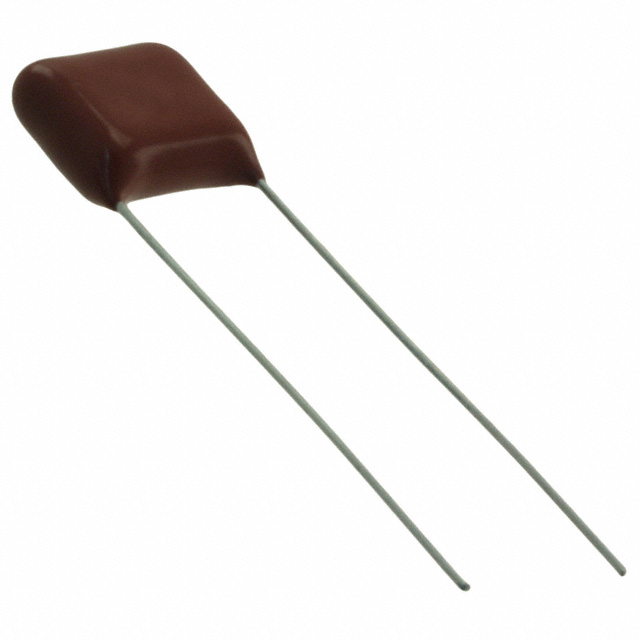

Panasonic Electronic Components ECQ-E2184JB	250 V	Radial		0.421 "	0.18 µF	PC Pins	General Purpose	10.3 mm	5 mm	0.406 in	0.197 "	5 %	Through Hole	0.295 in	7.5 mm	Polyester Metallized	-40 C	105 ░C	10.7 mm
Panasonic Electronic Components ECQ-E2184KFB	250 V	Radial		0.602 in	0.18 µF	PC Pins	General Purpose	12 mm	5 mm	0.472 in	0.197 "	10 %	Through Hole	0.394 in	10 mm	Polyester Metallized	-40 C	105 ░C	15.3 mm
Panasonic Electronic Components ECQ-E2184KF9	250 V	Radial		0.602 in	0.18 µF	PC Pins	General Purpose	12 mm	5 mm	0.472 in	0.197 "	10 %	Through Hole	0.197 "	5 mm	Polyester Metallized	-40 C	105 ░C	15.3 mm
Panasonic Electronic Components ECQ-E2184RKB	250 V	Radial	14.7 mm	0.579 "	0.18 µF	PC Pins	General Purpose	10.3 mm	5 mm	0.406 in	0.197 "	10 %	Through Hole	0.295 in	7.5 mm	Polyester Metallized	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2184JBB	250 V	Radial	14.7 mm	0.579 "	0.18 µF	PC Pins	General Purpose	10.3 mm	5 mm	0.406 in	0.197 "	5 %	Through Hole	0.197 "	5 mm	Polyester Metallized	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2184JF9	250 V	Radial		0.602 in	0.18 µF	PC Pins	General Purpose	12 mm	5 mm	0.472 in	0.197 "	5 %	Through Hole	0.197 "	5 mm	Polyester Metallized	-40 C	105 ░C	15.3 mm
Panasonic Electronic Components ECQ-E2184KF3	250 V	Radial		0.602 in	0.18 µF	PC Pins	General Purpose	12 mm	5 mm	0.472 in	0.197 "	10 %	Through Hole	0.197 "	5 mm	Polyester Metallized	-40 C	105 ░C	15.3 mm
