5550B Series
Manufacturer: Knowles Syfer
Beta
⌘K

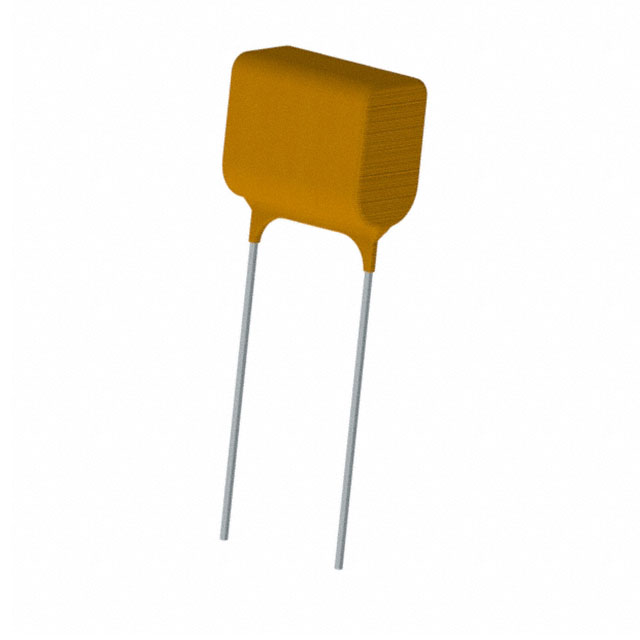

CAP CER 1500PF 6KV X7R RAD
| Part | Package / Case | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Temperature Coefficient | Lead Style | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage - Rated | Voltage - Rated | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Features | Capacitance | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 6000 V | 6 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 1500 pF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 9000 V | 9 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 10000 pF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 6000 V | 6 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 0.0047 µF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 6000 V | 6 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 2200 pF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 6000 V | 6 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 0.022 µF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 6000 V | 6 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 10000 pF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 6000 V | 6 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 0.001 µF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 9000 V | 9 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 0.0047 µF | 10 % |
Knowles Syfer | Radial | General Purpose | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | X7R | Straight | 19.68 mm | 0.775 " | 8 kV | 8 kV | Through Hole | -55 C | 125 °C | 14.73 mm | 0.58 in | High Voltage | 0.0047 µF | 10 % |
