R14166 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

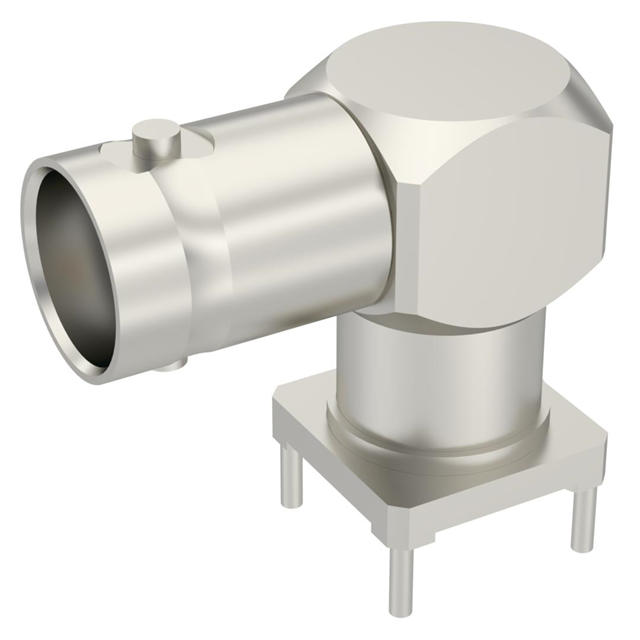

BNC / RIGHT ANGLE JACK RECEPTACL
| Part | Mating Cycles | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Center Contact Plating | Connector Style | Connector Type | Number of Ports | Housing Color | Mounting Type | Impedance | Shield Termination | Fastening Type | Center Contact Material | Frequency - Max [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 500 V | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Nickel | Brass | Gold | BNC | Female Socket Jack | 1 | Silver | Right Angle Through Hole | 50 Ohms | Solder | Bayonet Lock | Beryllium Copper | 4 GHz | Solder |
Radiall USA, Inc. | 500 V | Polytetrafluoroethylene (PTFE) | -35 °C | 70 °C | Nickel | Brass | Gold | BNC | Female Socket Jack | 1 | Silver | Right Angle Through Hole | 50 Ohms | Solder | Bayonet Lock | Bronze | 1.5 GHz | Solder | |
 Radiall USA, Inc. | 500 | 500 V | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Nickel | Brass | Gold | BNC | Female Socket Jack | 1 | Silver | Right Angle Through Hole | 50 Ohms | Solder | Bayonet Lock | Beryllium Copper | 4 GHz | Solder |
