ST-SOIC Series
Manufacturer: SchmalzTech, LLC
Beta
⌘K

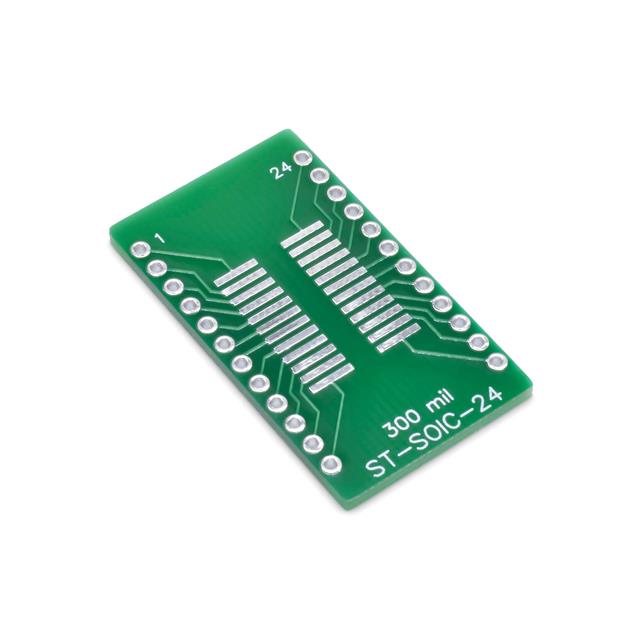

SOIC-24 SMD TO DIP ADAPTER
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package Accepted | Number of Positions | Board Thickness | Board Thickness | Proto Board Type | Material | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SchmalzTech, LLC | 0.8 " | 20.32 mm | 35.56 mm | 1.4 in | SOIC | 24 | 0.063 in | 1.6 mm | SMD to DIP | FR4 Epoxy Glass | 0.1 " | 2.54 mm |

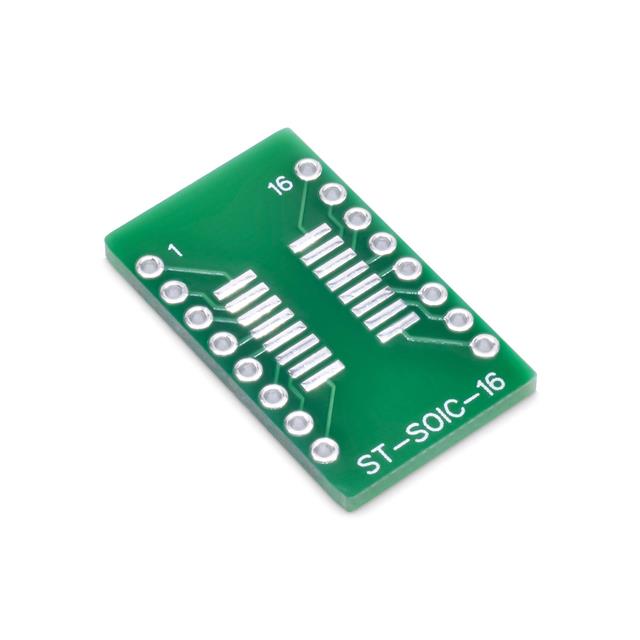

 SchmalzTech, LLC | 0.6 in 15.24 mm | 25.4 mm | SOIC | 16 | 0.063 in | 1.6 mm | SMD to DIP | FR4 Epoxy Glass | 0.1 " | 2.54 mm | ||

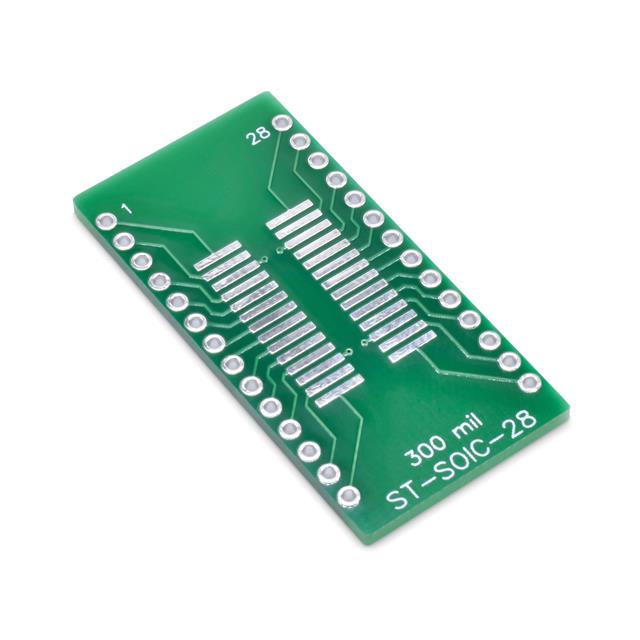

 SchmalzTech, LLC | 0.8 " | 20.32 mm | 40.64 mm | 1.6 " | SOIC | 28 | 0.063 in | 1.6 mm | SMD to DIP | FR4 Epoxy Glass | 0.1 " | 2.54 mm |
