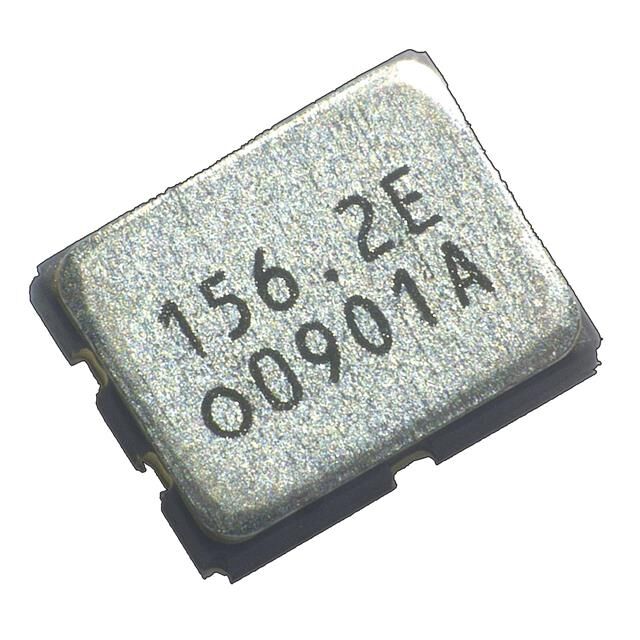

SG2520 Series

Manufacturer: EPSON

Catalog

SG2520VHN 468.7500M-ECGPZA6: XTA

Part	Current - Supply (Disable) (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Base Resonator [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Current - Supply (Max) [Max]	Output	Function	Frequency Stability	Voltage - Supply	Mounting Type	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
EPSON SG2520VHN 468.7500M-ECGPZA6	20 mA	0.033 in	0.85 mm	468.75 MHz	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	28 mA	LVDS	Enable/Disable	20 ppm	1.8 V	Surface Mount	2.5	6-SMD	2	6-SMD No Lead	85 °C	-40 C
EPSON SG2520VHN 491.5200M-DKGPZB6	20 mA	0.033 in	0.85 mm		Crystal	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	28 mA	LVDS	Enable/Disable		2.5 V	Surface Mount	2.5	6-SMD	2	6-SMD No Lead	85 °C	-40 C
EPSON SG2520VHN 468.7500M-ECGPZAB	20 mA	0.033 in	0.85 mm	468.75 MHz	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	28 mA	LVDS	Enable/Disable	20 ppm	1.8 V	Surface Mount	2.5	6-SMD	2	6-SMD No Lead	85 °C	-40 C
