PEC03 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Rows	Number of Positions Loaded	Mounting Type	Shrouding	Contact Type	Contact Shape	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Overall Contact Length	Overall Contact Length	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows [custom]	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Insulation Height [z]	Insulation Height [z]

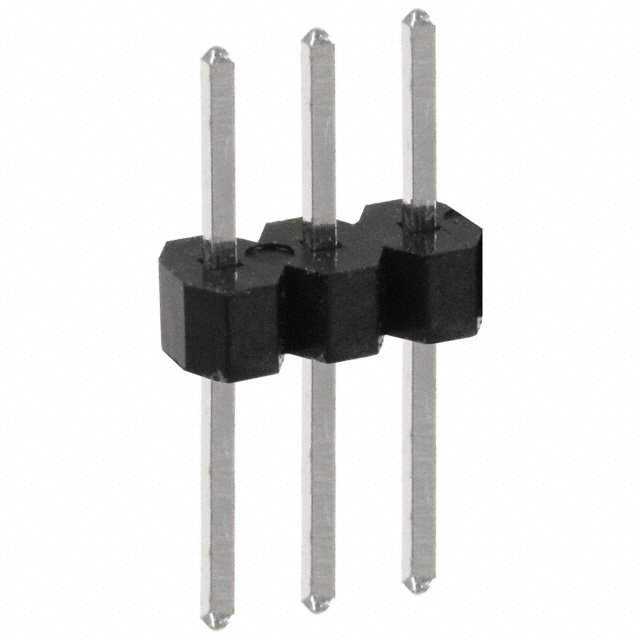

Sullins Connector Solutions PEC03SACN	2.54 µm	100 µin	Push-Pull	1	All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	8.13 mm	0.32 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable	16.51 mm	0.65 in	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm

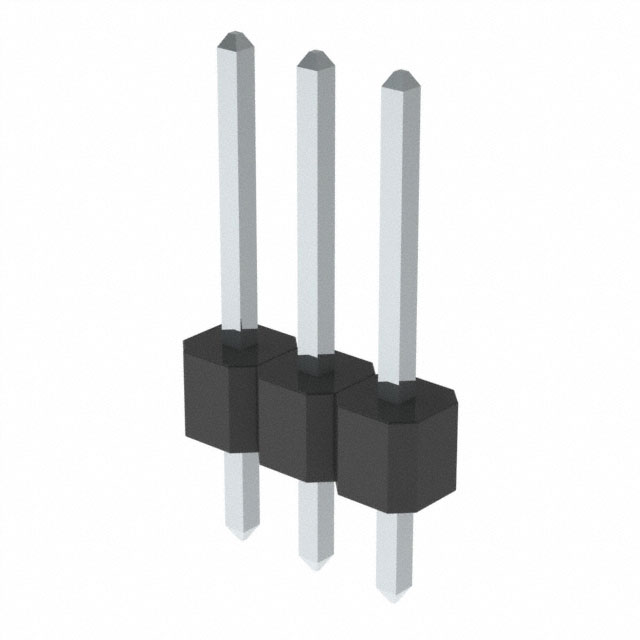

Sullins Connector Solutions PEC03SFAN	2.54 µm	100 µin	Push-Pull	1	All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	3.05 mm	0.12 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable			Solder	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	13.67 mm	0.538 in

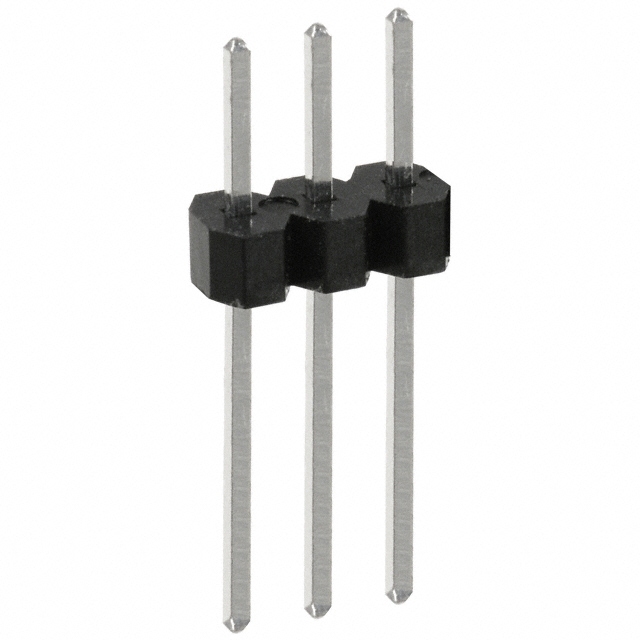

Sullins Connector Solutions PEC03SADN	2.54 µm	100 µin	Push-Pull	1	All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	10.67 mm	0.42 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable			Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	19.05 mm	0.75 in

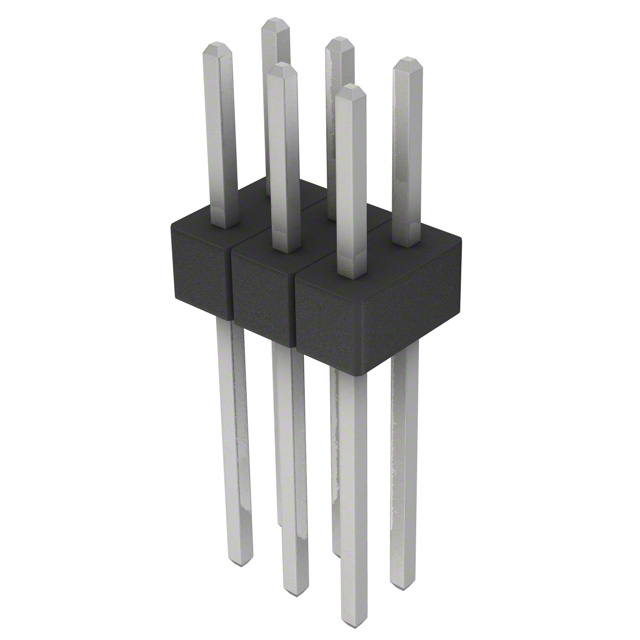

Sullins Connector Solutions PEC03DADN	2.54 µm	100 µin	Push-Pull		All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	10.67 mm	0.42 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable			Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	19.05 mm	0.75 in	2	6	0.1 in	2.54 mm

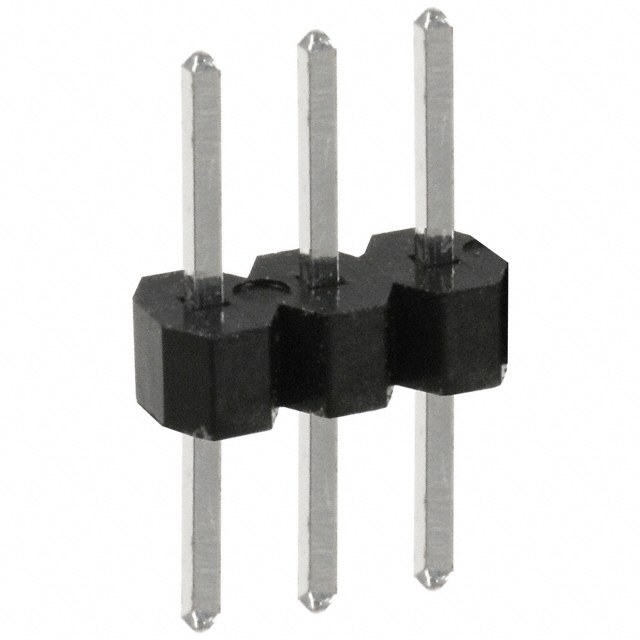

Sullins Connector Solutions PEC03SABN	2.54 µm	100 µin	Push-Pull	1	All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	5.84 mm	0.23 "	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable	14.22 mm	0.56 in	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm

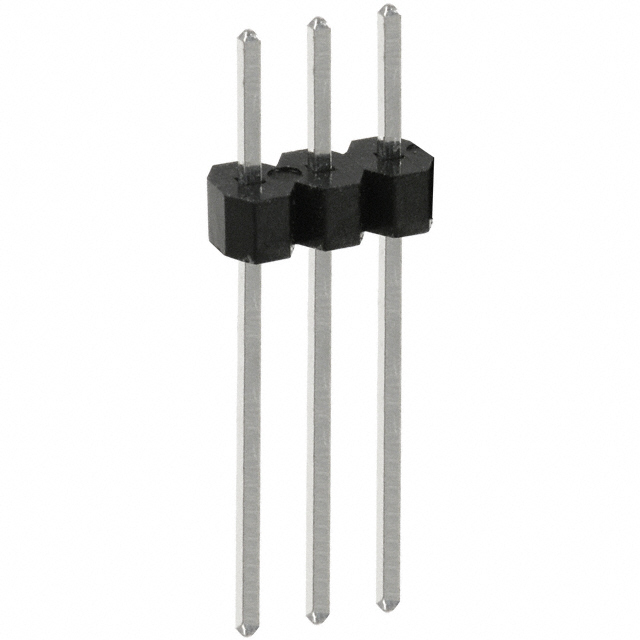

Sullins Connector Solutions PEC03SAGN	2.54 µm	100 µin	Push-Pull	1	All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	18.29 mm	0.72 "	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable	26.67 mm	1.05 in	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm

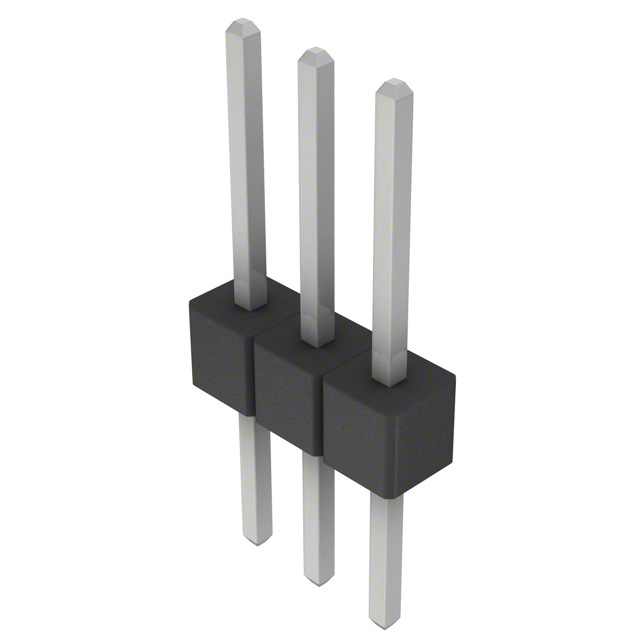

Sullins Connector Solutions PEC03SFBN	2.54 µm	100 µin	Push-Pull	1	All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	5.58 mm	0.22 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable	16.21 mm	0.638 in	Solder	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm

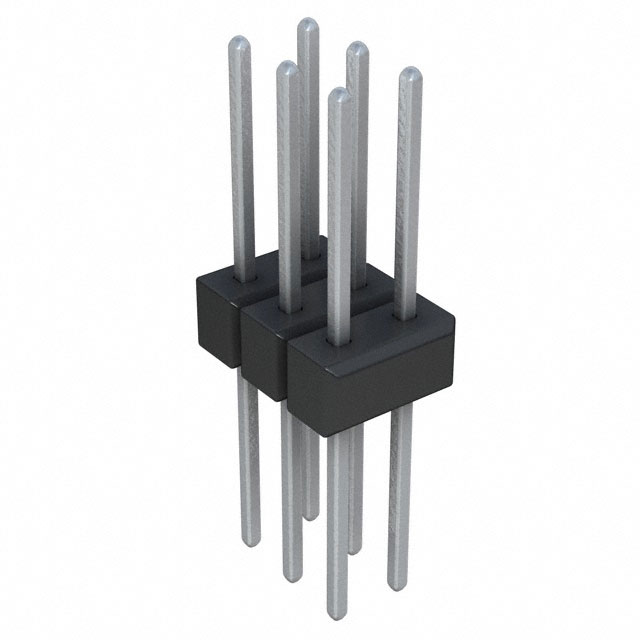

Sullins Connector Solutions PEC03DFCN	2.54 µm	100 µin	Push-Pull		All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	8.13 mm	0.32 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable	18.75 mm		Solder	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm			2	6	0.1 in	2.54 mm	0.738 in

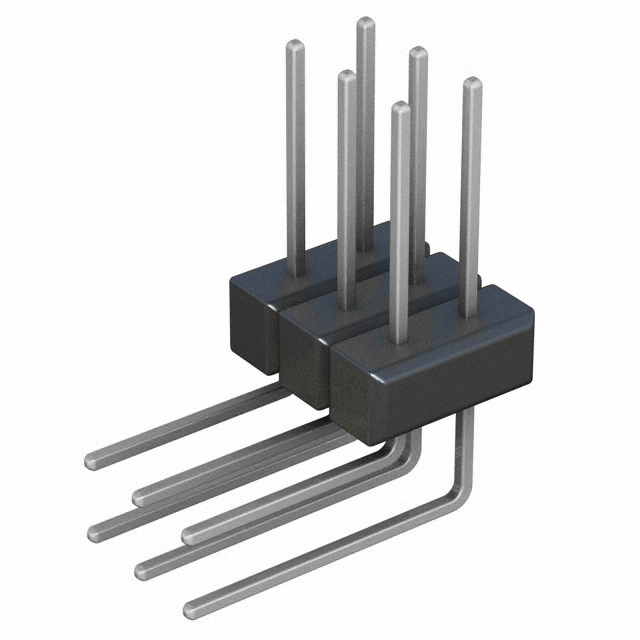

Sullins Connector Solutions PEC03DBCN	2.54 µm	100 µin	Push-Pull		All	Right Angle Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	7.62 mm	0.3 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable			Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze			0.1 "	2.54 mm			2	6	0.1 in	2.54 mm		6.1 mm	0.24 in
Sullins Connector Solutions PEC03SAEN	2.54 µm	100 µin	Push-Pull	1	All	Through Hole	Unshrouded	Male Pin	Square	Black	Tin	100 çin	2.54 çm	13.21 mm	0.52 in	Header Breakaway	3 A	UL94 V-0	-65 ░C	125 °C	Board to Board Cable	21.59 mm	0.85 in	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm
