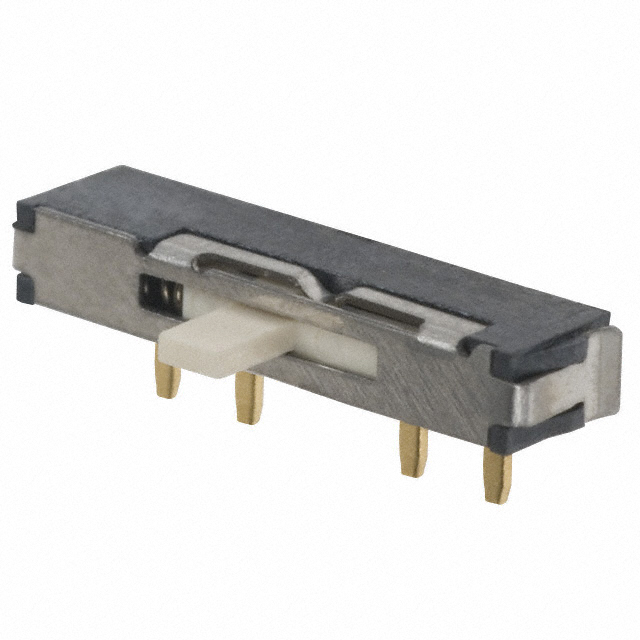

CSS-1311 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SLIDE SWITCH, SP3T, 0.1A, 12VDC, SMD ROHS COMPLIANT: YES
| Part | Switch Travel | Electrical Life | Actuator Material | Operating Force [Max] | Operating Force [Min] | Circuit | Switch Function | Contact Material | Contact Finish | Voltage Rating - DC | Termination Style | Contact Timing | Actuator Type | Actuator Length [x] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 2 mm | 10000 Cycles | Liquid Crystal Polymer (LCP) | 357 gf | 102 gf | SP3T | On-On-Mom | Copper Alloy | Gold | 12 V | Gull Wing | Non-Shorting (BBM) | Standard | 2 mm | 100 mA | -20 ░C | 70 °C | Right Angle Surface Mount |
Nidec Components Corporation | 2 mm | 10000 Cycles | Liquid Crystal Polymer (LCP) | 357 gf | 102 gf | SP3T | On-On-Mom | Copper Alloy | Gold | 12 V | PC Pin | Non-Shorting (BBM) | Standard | 2 mm | 100 mA | -20 ░C | 70 °C | Right Angle Through Hole |
