ALCOSWITCH PB7 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PUSHBUTTON SWITCHES PB ON/OFF HC BLUE M1 TERM IP68 .5M LHS

Part	Color - Actuator/Cap	Switch Function	Current Rating (Amps)	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Termination Style	Actuator Marking	Voltage Rating - DC	Ingress Protection	Mechanical Life	Electrical Life
TE Connectivity AMP Connectors PB7B2HS7M1CAL00Y500	Blue	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Wire Leads	No Marking	50 VDC	IP68 - Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2FM3M1CAL00	Red	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Solder Lug	No Marking	50 VDC	IP68 - Dust Tight Waterproof

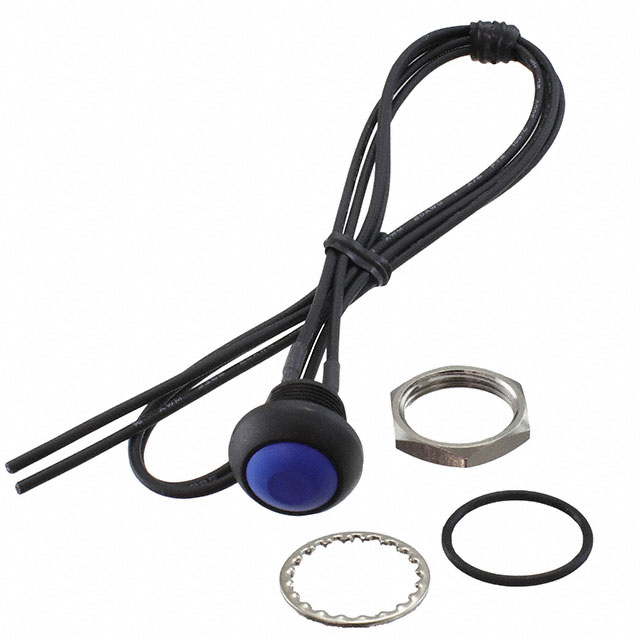

TE Connectivity AMP Connectors PB7B2FM7M1CAL00Y500	Blue	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Wire Leads	No Marking	50 VDC	IP68 - Dust Tight Waterproof	1000000 Cycles	500000 Cycles

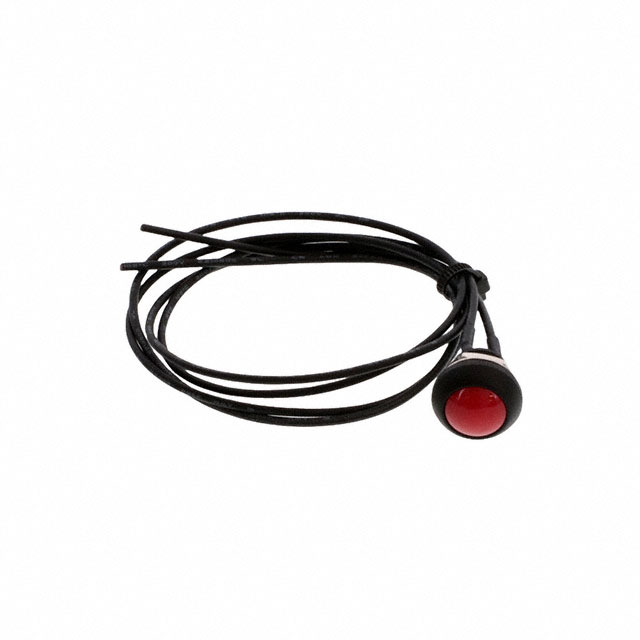

TE Connectivity AMP Connectors PB7B2RS3M1CAL00Y500	Red	On-Mom	125 mA 200 mA	Button Domed Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Wire Leads	No Marking	50 VDC	IP68 - Dust Tight Waterproof	1000000 Cycles	500000 Cycles
TE Connectivity AMP Connectors PB7B2HS5M1CAL00Y500	Yellow	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Wire Leads	No Marking	50 VDC	IP68 - Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2HS6M1CAL00	Green	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Solder Lug	No Marking	50 VDC	IP68 - Dust Tight Waterproof	1000000 Cycles	500000 Cycles
TE Connectivity AMP Connectors PB7B2RS7M1CAL00	Blue	On-Mom	125 mA 200 mA	Button Domed Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Solder Lug	No Marking	50 VDC	IP68 - Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2HS2M1CAL00Y500	Black	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Wire Leads	No Marking	50 VDC	IP68 - Dust Tight Waterproof	1000000 Cycles	500000 Cycles
TE Connectivity AMP Connectors PB7B2RS6M1CAL00	Green	On-Mom	125 mA 200 mA	Button Domed Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Solder Lug	No Marking	50 VDC	IP68 - Dust Tight Waterproof	1000000 Cycles	500000 Cycles

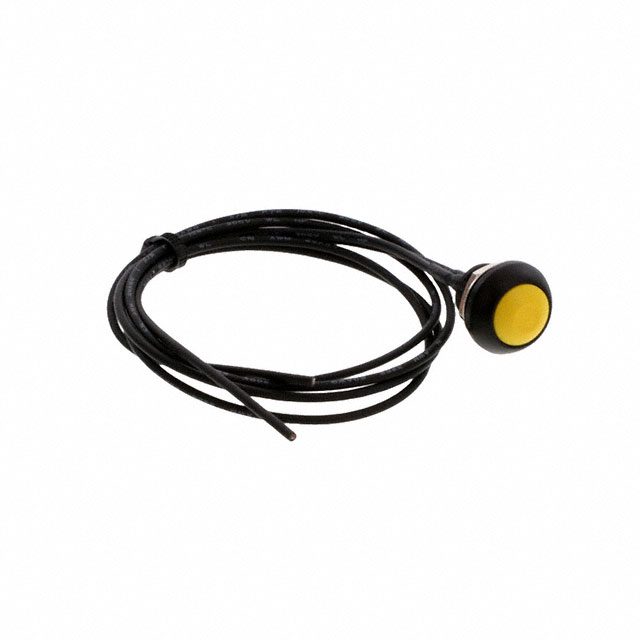

TE Connectivity AMP Connectors PB7B2FM5M1CAL00Y500	Yellow	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	125 V	85 °C	-30 ░C	Standard	Panel Mount Front	Wire Leads	No Marking	50 VDC	IP68 - Dust Tight Waterproof	1000000 Cycles	500000 Cycles
