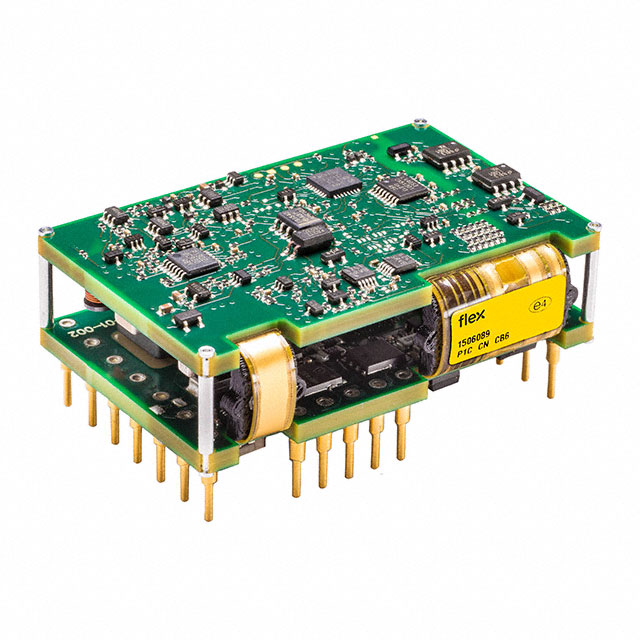

PIM471 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 3.6V 25W
| Part | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Standard Number | Voltage - Input (Min) [Min] | Features | Power (Watts) | Type | Approval Agency | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Mounting Type | Number of Outputs | Current - Output (Max) [Max] | Efficiency | Voltage - Output 1 | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | Quarter Brick | 105 C | -40 °C | 75 V | 62368-1 | 36 V | PMBus™ | 25 W | Isolated Module | CB CSA IEC TUV UL | ITE (Commercial) | 1.45 in | 36.8 mm | 57.9 mm | 20.8 mm | 2.28 " | 0.82 " | 2000 V | Through Hole | 1 | 7 A | 98.8 % | 3.6 V | Quarter Brick |
