VED1A60B Series

Catalog

SWITCH ROCKER SP3T 20A 12V

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Ingress Protection	Termination Style	Actuator Marking	Approval Agency	Mounting Type	Illumination Voltage (Nominal)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Features	Circuit	Voltage Rating - DC	Illumination Type, Color	Actuator Type
Carling Technologies VED1A60B-ARR00-000	100000 Cycles	100000 Cycles	36.83 mm	21.08 mm	On-On-On	IP66 IP68	Quick Connect - 0.250" (6.3mm)	No Marking	CSA UL VDE	Panel Mount Snap-In	12 VAC/DC	20 A	85 °C	-40 C	Red	Jumper needed to achieve triple throw	SP3T	12 V	Incandescent Red	Convex (Reverse V) - Illuminated
Carling Technologies VED1A60B-AKB00-000	100000 Cycles	100000 Cycles	36.83 mm	21.08 mm	On-On-On	IP66 IP68	Quick Connect - 0.250" (6.3mm)	No Marking	CSA UL VDE	Panel Mount Snap-In	12 VAC/DC	20 A	85 °C	-40 C	Black	Jumper needed to achieve triple throw	SP3T	12 V	Green Incandescent	Convex (Reverse V) - Illuminated
Carling Technologies VED1A60B-AEC00-000	100000 Cycles	100000 Cycles	36.83 mm	21.08 mm	On-On-On	IP66 IP68	Quick Connect - 0.250" (6.3mm)	No Marking	CSA UL VDE	Panel Mount Snap-In	12 VAC/DC	20 A	85 °C	-40 C	Black	Jumper needed to achieve triple throw	SP3T	12 V	Amber Incandescent	Convex (Reverse V) - Illuminated
Carling Technologies VED1A60B-AEB00-000	100000 Cycles	100000 Cycles	36.83 mm	21.08 mm	On-On-On	IP66 IP68	Quick Connect - 0.250" (6.3mm)	No Marking	CSA UL VDE	Panel Mount Snap-In	12 VAC/DC	20 A	85 °C	-40 C	Black	Jumper needed to achieve triple throw	SP3T	12 V	Amber Incandescent	Convex (Reverse V) - Illuminated

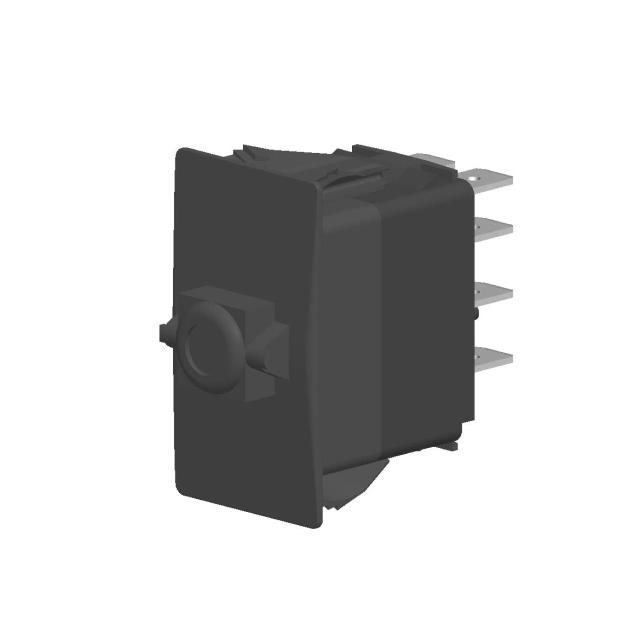

Carling Technologies VED1A60B-00000-000	100000 Cycles	100000 Cycles	36.83 mm	21.08 mm	On-On-On	IP66 IP68	Quick Connect - 0.250" (6.3mm)	Varies by Cap	CSA UL VDE	Panel Mount Snap-In	12 VAC/DC	20 A	85 °C	-40 C		Jumper needed to achieve triple throw	SP3T	12 V	Incandescent	Actuator Arm Cap Required Illuminated
Carling Technologies VED1A60B-ARB00-000	100000 Cycles	100000 Cycles	36.83 mm	21.08 mm	On-On-On	IP66 IP68	Quick Connect - 0.250" (6.3mm)	No Marking	CSA UL VDE	Panel Mount Snap-In	12 VAC/DC	20 A	85 °C	-40 C	Black	Jumper needed to achieve triple throw	SP3T	12 V	Incandescent Red	Convex (Reverse V) - Illuminated
