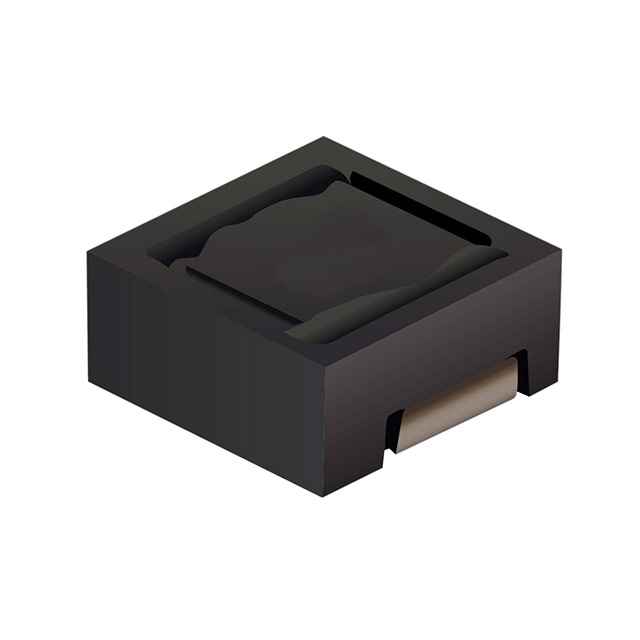

SRR3818A Series

Catalog

INDUCTOR, SHIELDED, 47UH, 20%, AEC-Q200

Part	Current - Saturation (Isat)	Inductance Frequency - Test	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Shielding	Tolerance	Inductance	Ratings	Material - Core	Mounting Type	Package / Case	Type	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)
Bourns Inc. SRR3818A-470M	300 mA	100 kHz	15 MHz	0.079 in	2 mm	0.56 A	Shielded	20 %	47 µH	AEC-Q200	Ferrite	Surface Mount	Nonstandard	Drum Core Wirewound	1.03 Ohm	-40 C	150 °C
Bourns Inc. SRR3818A-6R8Y	800 mA	100 kHz	50 MHz	0.079 in	2 mm	1.6 A	Shielded	30 %	6.8 µH	AEC-Q200	Ferrite	Surface Mount	Nonstandard	Drum Core Wirewound	160 mOhm	-40 C	150 °C
Bourns Inc. SRR3818A-3R9Y	1.05 A	100 kHz		0.079 in	2 mm	2 A	Shielded	30 %	3.9 µH	AEC-Q200	Ferrite	Surface Mount	Nonstandard	Drum Core Wirewound		-40 C	150 °C	105 mOhm
Bourns Inc. SRR3818A-2R7Y	1.3 A	100 kHz	90 MHz	0.079 in	2 mm	2.5 A	Shielded	30 %	2.7 µH	AEC-Q200	Ferrite	Surface Mount	Nonstandard	Drum Core Wirewound	65 mOhm	-40 C	150 °C
Bourns Inc. SRR3818A-2R2Y	1.4 A	100 kHz	95 MHz	0.079 in	2 mm	2.6 A	Shielded	30 %	2.2 µH	AEC-Q200	Ferrite	Surface Mount	Nonstandard	Drum Core Wirewound		-40 C	150 °C
Bourns Inc. SRR3818A-330M	340 mA	100 kHz	20 MHz	0.079 in	2 mm	650 mA	Shielded	20 %	33 µH	AEC-Q200	Ferrite	Surface Mount	Nonstandard	Drum Core Wirewound	740 mOhm	-40 C	150 °C
