MP6530 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

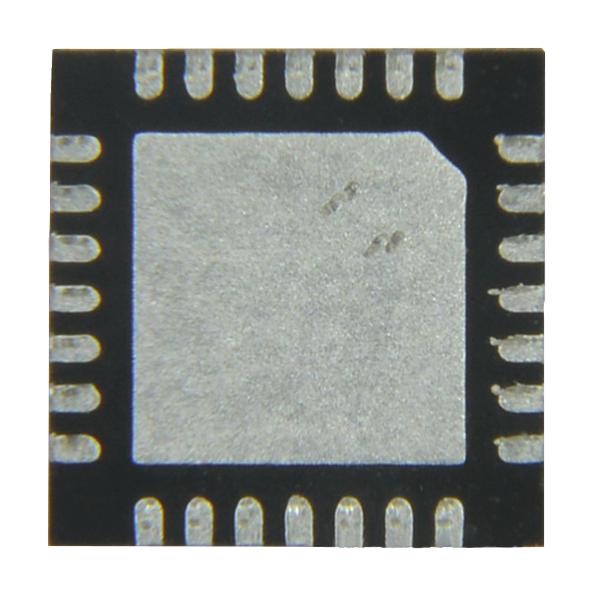

MOTOR DRIVER/CONTROLLER, THREE PHASE DC BRUSHLESS, 1 OUTPUT, 5 V TO 60 V SUPPLY, QFN-28
| Part | Motor Type - AC, DC | Applications | Motor Type - Stepper | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Function | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Output | Output Configuration | Voltage - Load [Max] | Voltage - Load [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Brushless DC (BLDC) | General Purpose | Multiphase | Power MOSFET | -40 C | 125 °C | 28-VFQFN Exposed Pad | Controller - Speed | Surface Mount | 5 V | 60 VDC | 1 A | Pre-Driver - Half Bridge (3) | 60 V | 5 V | 28-QFN (4x4) |
Monolithic Power Systems Inc. | Brushless DC (BLDC) | General Purpose | Multiphase | Power MOSFET | -40 C | 125 °C | 28-VFQFN Exposed Pad | Controller - Speed | Surface Mount | 5 V | 60 VDC | 1 A | Pre-Driver - Half Bridge (3) | 60 V | 5 V | 28-QFN (4x4) |
 Monolithic Power Systems Inc. | 28-TSSOP (0.173" 4.40mm Width) Exposed Pad | Surface Mount | 28-TSSOP-EP |
