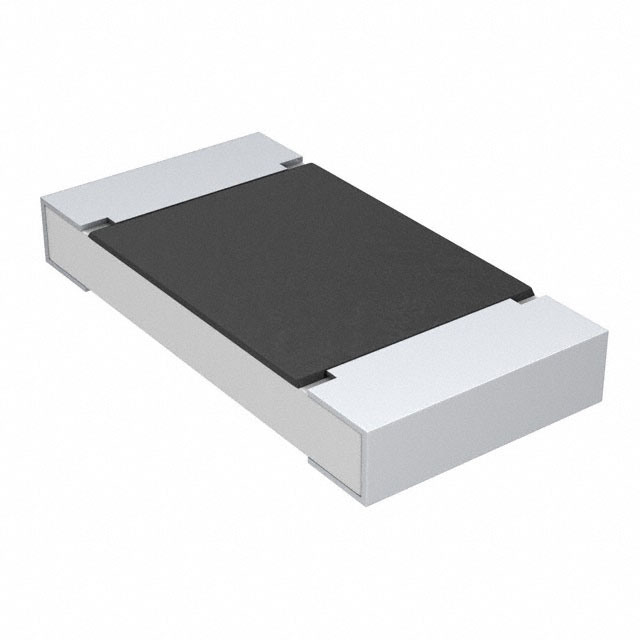

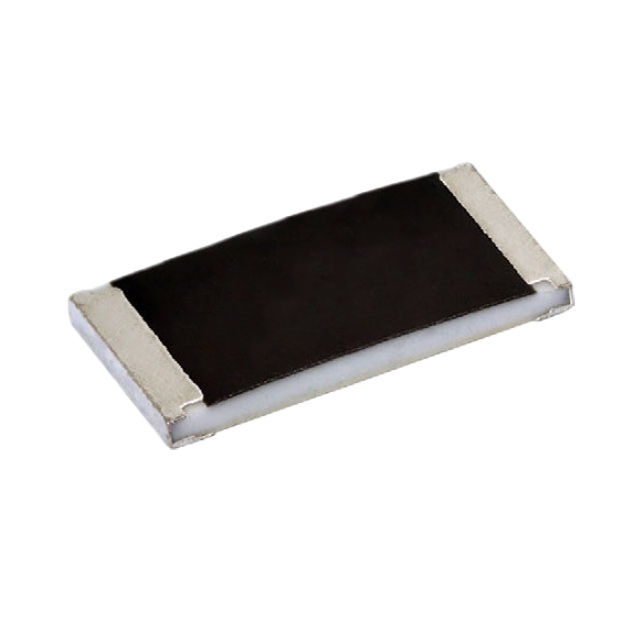

CRCW2010 Series
Manufacturer: Vishay Dale
Beta
⌘K
RES SMD 9.76K OHM 1% 1W 2010
| Part | Tolerance | Features | Ratings | Temperature Coefficient | Power (Watts) | Height - Seated (Max) | Number of Terminations | Size / Dimension Length | Size / Dimension Width | Package Name | Package / Case | Composition | Resistance | Operating Temperature (Max) | Operating Temperature (Min) | Power (Watts) Options |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 1 % | Automotive AEC-Q200 Pulse Withstanding | AEC-Q200 | 100 ppm/°C | 1 W | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 9.76 kOhm | 155 °C | -55 °C | |
Vishay Dale | 1 % | Automotive AEC-Q200 Pulse Withstanding | AEC-Q200 | 100 ppm/°C | 1 W | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 200 kOhm | 155 °C | -55 °C | |
Vishay Dale | 1 % | Automotive AEC-Q200 Pulse Withstanding | AEC-Q200 | 100 ppm/°C | 1 W | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 30.1 kOhm | 155 °C | -55 °C | |
 Vishay Dale | 5 % | Automotive AEC-Q200 | AEC-Q200 | 200 ppm/°C | 750 mW | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 43 Ohm | 155 °C | -55 °C | 3/4W |
Vishay Dale | 5 % | Automotive AEC-Q200 | AEC-Q200 | 200 ppm/°C | 750 mW | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 1.1 Ohm | 155 °C | -55 °C | 3/4W |
Vishay Dale | 1 % | Automotive AEC-Q200 Pulse Withstanding | AEC-Q200 | 100 ppm/°C | 1 W | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 3.16 kOhm | 155 °C | -55 °C | |
Vishay Dale | 5 % | Automotive AEC-Q200 | AEC-Q200 | 200 ppm/°C | 750 mW | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 130 kOhm | 155 °C | -55 °C | 3/4W |
Vishay Dale | 1 % | Automotive AEC-Q200 | AEC-Q200 | 100 ppm/°C | 750 mW | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 191 kOhm | 155 °C | -55 °C | 3/4W |
Vishay Dale | 1 % | Automotive AEC-Q200 | AEC-Q200 | 100 ppm/°C | 750 mW | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 274 Ohm | 155 °C | -55 °C | 3/4W |
Vishay Dale | 5 % | Automotive AEC-Q200 Pulse Withstanding | AEC-Q200 | 200 ppm/°C | 1 W | 0.028 in | 2 | 0.197 in | 0.098 in | 2010 | 2010 (5025 Metric) | Thick Film | 62 kOhm | 155 °C | -55 °C |
