M80-770 Series
Manufacturer: Harwin Inc.
Beta
⌘K

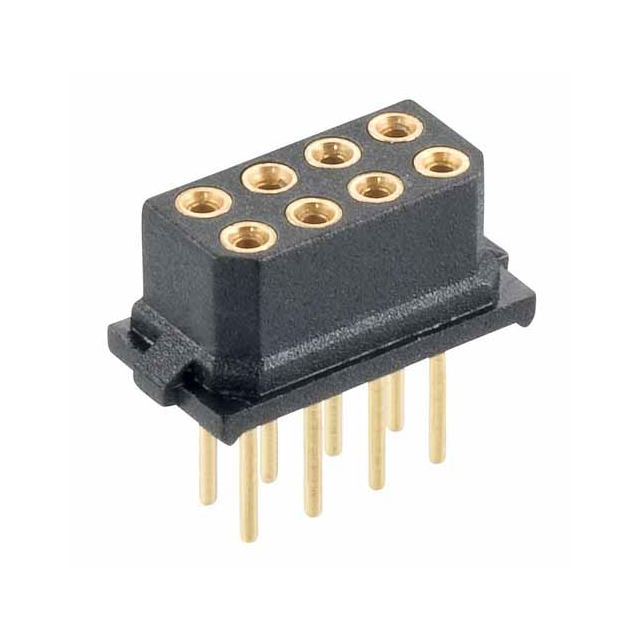

10+10 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. FOR LATCHES ROHS COMPLIANT: YES
| Part | Insulation Material | Contact Material | Contact Shape | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Insulation Height | Insulation Height | Number of Rows [custom] | Number of Positions Loaded | Fastening Type | Mounting Type | Insulation Color | Termination | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Style | Contact Type | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Nylon 4/6 Polyamide (PA46) | Beryllium Copper | Circular | Automotive General Purpose Military | 10 Áin | 0.25 çm | Gold | 4.5 mm | 0.177 in | 120 VDC | 0.079 " | 2 mm | 12 Áin | 0.3 Ám | UL94 V-0 | -55 C | 125 °C | Receptacle | 20 | 0.202 in | 5.14 mm | 2 | All | Locking Ramp | Through Hole | Black | Solder | Gold | 2 mm | 0.079 in | Board to Board Cable | Female Socket | 7.23 mm 7.85 mm |
Harwin Inc. | Nylon 4/6 Polyamide (PA46) | Beryllium Copper | Circular | Automotive General Purpose Military | 10 Áin | 0.25 çm | Gold | 4.5 mm | 0.177 in | 120 VDC | 0.079 " | 2 mm | 12 Áin | 0.3 Ám | UL94 V-0 | -55 C | 125 °C | Receptacle | 10 | 0.202 in | 5.14 mm | 2 | All | Locking Ramp | Through Hole | Black | Solder | Gold | 2 mm | 0.079 in | Board to Board Cable | Female Socket | 7.23 mm 7.85 mm |
Harwin Inc. | Nylon 4/6 Polyamide (PA46) | Beryllium Copper | Circular | Automotive General Purpose Military | 157.5 Áin | 4 Ám | Gold | 4.5 mm | 0.177 in | 120 VDC | 0.079 " | 2 mm | 12 Áin | 0.3 Ám | UL94 V-0 | -55 C | 125 °C | Receptacle | 20 | 0.202 in | 5.14 mm | 2 | All | Locking Ramp | Through Hole | Black | Solder | Tin | 2 mm | 0.079 in | Board to Board Cable | Female Socket | 7.23 mm 7.85 mm |
Harwin Inc. | Nylon 4/6 Polyamide (PA46) | Beryllium Copper | Circular | Automotive General Purpose Military | 157.5 Áin | 4 Ám | Gold | 4.5 mm | 0.177 in | 120 VDC | 0.079 " | 2 mm | 12 Áin | 0.3 Ám | UL94 V-0 | -55 C | 125 °C | Receptacle | 12 | 0.202 in | 5.14 mm | 2 | All | Locking Ramp | Through Hole | Black | Solder | Tin | 2 mm | 0.079 in | Board to Board Cable | Female Socket | 7.23 mm 7.85 mm |
Harwin Inc. | Nylon 4/6 Polyamide (PA46) | Beryllium Copper | Circular | Automotive General Purpose Military | 157.5 Áin | 4 Ám | Gold | 4.5 mm | 0.177 in | 120 VDC | 0.079 " | 2 mm | 12 Áin | 0.3 Ám | UL94 V-0 | -55 C | 125 °C | Receptacle | 10 | 0.202 in | 5.14 mm | 2 | All | Locking Ramp | Through Hole | Black | Solder | Tin | 2 mm | 0.079 in | Board to Board Cable | Female Socket | 7.23 mm 7.85 mm |
Harwin Inc. | Nylon 4/6 Polyamide (PA46) | Beryllium Copper | Circular | Automotive General Purpose Military | 10 Áin | 0.25 çm | Gold | 4.5 mm | 0.177 in | 120 VDC | 0.079 " | 2 mm | 12 Áin | 0.3 Ám | UL94 V-0 | -55 C | 125 °C | Receptacle | 16 | 0.202 in | 5.14 mm | 2 | All | Locking Ramp | Through Hole | Black | Solder | Gold | 2 mm | 0.079 in | Board to Board Cable | Female Socket | 7.23 mm 7.85 mm |
