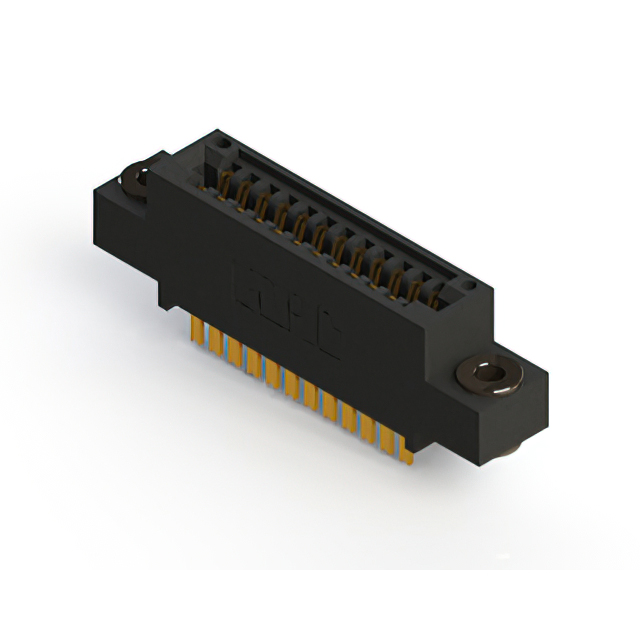

895-024 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 24POS 0.100
...
| Part | Color | Material - Insulation | Gender | Contact Type | Number of Rows | Contact Material | Termination | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination Rows | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 2 | Copper Alloy | Solder Eyelet(s) | Through Hole | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 12 | |
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 1 | Copper Alloy | Wire Wrap | Through Hole | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | 24 | |
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 2 | Copper Alloy | Wire Wrap | Through Hole | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 12 | |
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 2 | Copper Alloy | Solder Eyelet(s) | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 12 | ||||
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 1 | Copper Alloy | Wire Wrap | Through Hole | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | 24 | |
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 2 | Copper Alloy | Wire Wrap | Through Hole | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 12 | |
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 1 | Copper Alloy | Wire Wrap | Through Hole | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | 24 | |||
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 2 | Copper Alloy | Solder | Through Hole | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 12 | |
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 2 | Copper Alloy | Solder | Board Edge Straddle Mount | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 12 | Card Extender |
 EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Female | Cantilever | 1 | Copper Alloy | Solder | Through Hole | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 125 °C | -40 °C | Gold | Non Specified - Single Edge | Single | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | 24 |
