2314822 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,BB,REC,DRVT,2.7,0.76AU,TU

Part	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Number of Positions	Number of Positions Loaded	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Type	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Mounting Type	Voltage Rating	Contact Shape	Contact Material	Fastening Type	Contact Finish - Post	Number of Positions

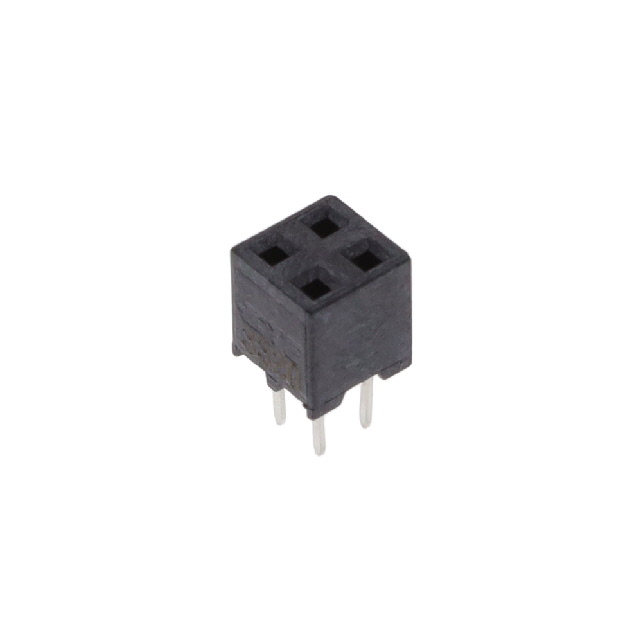

TE Connectivity Raychem Cable Protection 2314822-4	0.079 in	2 mm	Black	4	All	UL94 V-0	0.106 in	2.69 mm	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	0.3 µm	12 µin	2	30 Áin	0.76 Ám	Solder	Female Socket	0.177 in	4.5 mm	Gold	Receptacle	0.079 in	2 mm	2 A	Through Hole	125 VDC	Square	Phosphor Bronze	Push-Pull	Tin

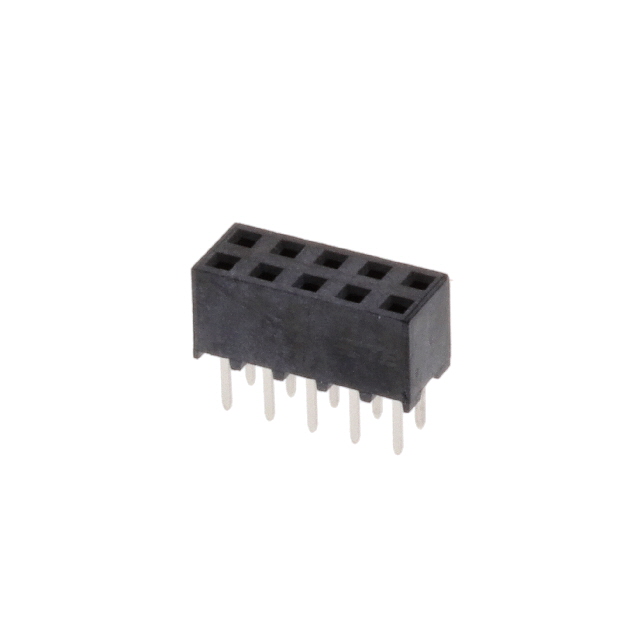

TE Connectivity Raychem Cable Protection 1-2314822-0	0.079 in	2 mm	Black	10	All	UL94 V-0	0.106 in	2.69 mm	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	0.3 µm	12 µin	2	3.94 µin	0.1 µm	Solder	Female Socket	0.177 in	4.5 mm	Gold	Receptacle	0.079 in	2 mm	2 A	Through Hole	125 VAC	Square	Phosphor Bronze	Push-Pull	Tin

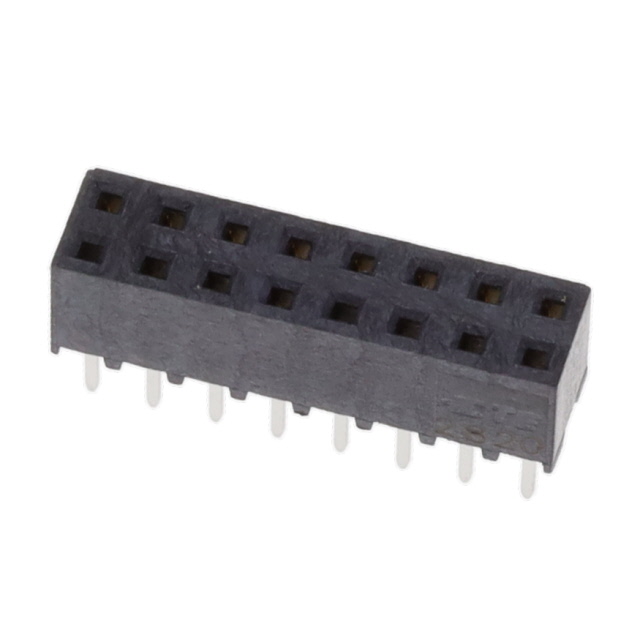

TE Connectivity Raychem Cable Protection 1-2314822-6	0.079 in	2 mm	Black		All	UL94 V-0	0.106 in	2.69 mm	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	0.3 µm	12 µin	2	30 Áin	0.76 Ám	Solder	Female Socket	0.177 in	4.5 mm	Gold	Receptacle	0.079 in	2 mm	2 A	Through Hole	125 VDC	Square	Phosphor Bronze	Push-Pull	Tin	16
