807-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K

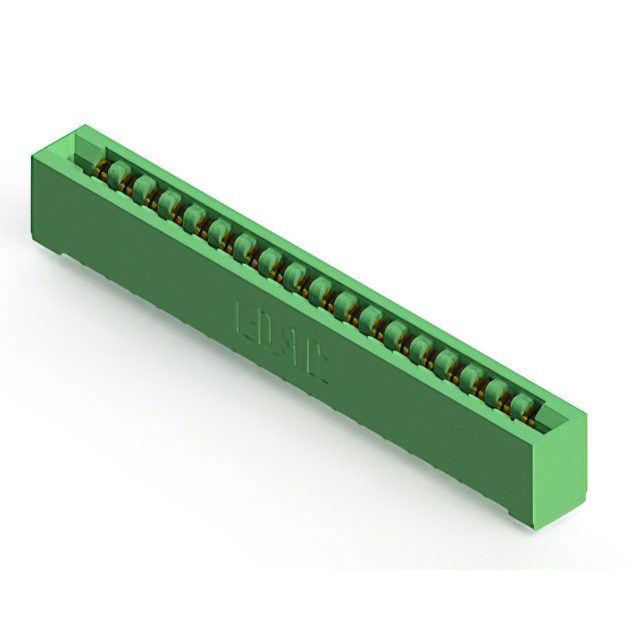

CONN EDGE DUAL FMALE 18POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Material | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Termination | Contact Type | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Card Type | Mounting Type | Read Out | Flange Feature | Number of Positions | Contact Finish | Color | Number of Positions/Bay/Row | Features | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Board Edge Straddle Mount | Dual | Flush Mount M3 Threaded Insert Top Opening | 18 | Tin | Green | 9 | Card Extender | |||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Right Angle Through Hole | Dual | 36 | Gold | Green | 18 | 0.25 Ám | 10 Áin | 1 | |||||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Right Angle Through Hole | Single | Flush Mount Top Opening Unthreaded | 18 | Gold | Green | 9 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Single Edge | Through Hole | Single | 4-40 Flush Mount Threaded Insert Top Opening | 18 | Tin | Green | 18 | 1 | 1 | ||||||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Through Hole | Dual | Flush Mount M3 Threaded Insert Top Opening | 18 | Gold | Green | 9 | 0.25 Ám | 10 Áin | ||||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Right Angle Through Hole | Single | Flush Mount M3 Threaded Insert Top Opening | 18 | Tin | Green | 9 | ||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Single Edge | Through Hole | Single | Flush Mount Top Opening Unthreaded | 18 | Tin | Green | 18 | 1 | 0.128 " | 3.25 mm | 1 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Right Angle Through Hole | Dual | Side Mount Opening Unthreaded | 36 | Tin | Green | 18 | 1 | 0.128 " | 3.25 mm | ||||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 18 | Gold | Green | 9 | 0.25 Ám | 10 Áin | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Semi Bellows | 3.96 mm | 0.156 in | 125 °C | -40 C | Female | Non Specified - Dual Edge | Right Angle Through Hole | Dual | Flush Mount Top Opening Unthreaded | 36 | Tin | Green | 18 | 1 | 0.128 " | 3.25 mm |
