SLE24 Series

Wall Mount AC Adapters 24W 48Vout 2.3mm Contacts Required

Manufacturer: SL POWER / Advanced Energy

Catalog

Wall Mount AC Adapters 24W 48Vout 2.3mm Contacts Required

Catalog

Wall Mount AC Adapters 24W 48Vout 2.3mm Contacts Required

Part	Region Utilized	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector	Output Connector [x]	Applications	Efficiency	Current - Output (Max) [Max]	Form	Input Type	No Load Power Consumption	Cord Length	Cord Length	Approval Agency	Polarization	Power (Watts)	Input Connector	Standard Number
SL POWER / Advanced Energy SLE24S4803B01	International	3.46 "	57 mm	30 mm	88 mm	2.24 in	1.18 "	48 V	264 VAC	90 VAC	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	ITE (Commercial) Medical	CoC Tier 2 Level VI	500 mA	Wall Mount	Multi-Blade (Sold Separately)	75 mW	1.5 m	59 in	CB CCC CE cULus cURus GS PSE RCM TUV	Positive Center	24 W	Multi-Blade (Sold Separately)
SL POWER / Advanced Energy SLE24S2403B01	International	3.46 "	57 mm	30 mm	88 mm	2.24 in	1.18 "	24 V	264 VAC	90 VAC	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	ITE (Commercial) Medical	CoC Tier 2 Level VI	1 A	Wall Mount	Multi-Blade (Sold Separately)	75 mW	1.5 m	59 in	CB CCC CE cULus cURus GS PSE RCM TUV	Positive Center	24 W	Multi-Blade (Sold Separately)
SL POWER / Advanced Energy SLE24S1203C01	International	3.46 "	57 mm	30 mm	88 mm	2.24 in	1.18 "	12 V	264 VAC	90 VAC	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	9.5 mm	ITE (Commercial) Medical	CoC Tier 2 Level VI	2 A	Wall Mount	Multi-Blade (Included)	75 mW	1.5 m	59 in	CB CCC CE cULus cURus GS PSE RCM TUV	Positive Center	24 W	Multi-Blade (Included)	60601-1 60950-1 62368-1

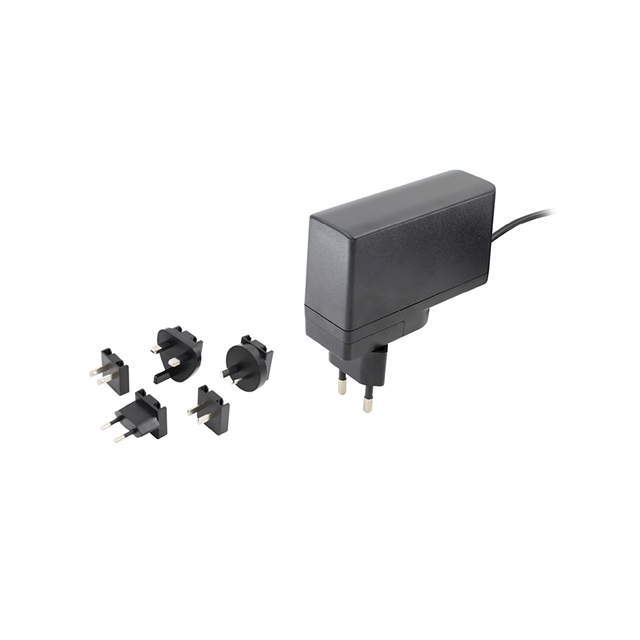

SL POWER / Advanced Energy SLE24S1203B01	International	3.46 "	57 mm	30 mm	88 mm	2.24 in	1.18 "	12 V	264 VAC	90 VAC	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	ITE (Commercial) Medical	CoC Tier 2 Level VI	2 A	Wall Mount	Multi-Blade (Sold Separately)	75 mW	1.5 m	59 in	CB CCC CE cULus cURus GS PSE RCM TUV	Positive Center	24 W	Multi-Blade (Sold Separately)
