0375-0 Series

Catalog

CONN OFP PIN RCPT .040/.050" DIA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth

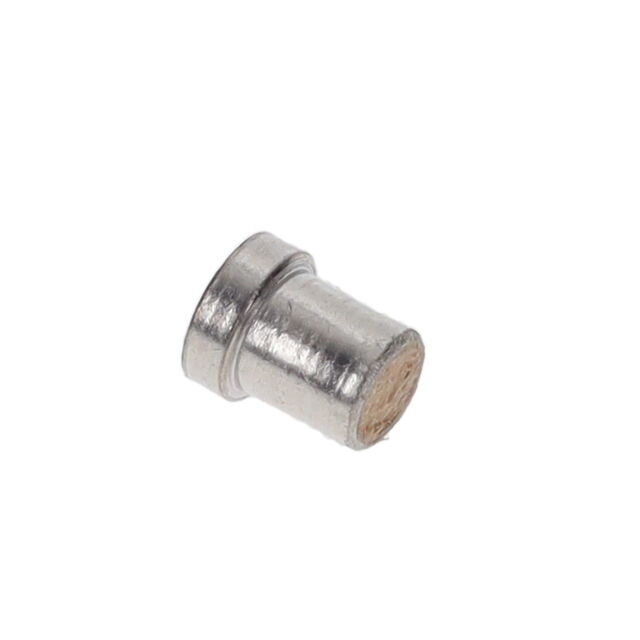

Mill-Max Manufacturing Corp. 0375-0-43-80-02-27-10-0	-55 C	125 °C	Knockout Bottom (Organic Fiber Plug®)	0.12 in	3.05 mm	Solder	30 Áin	0.76 Ám	0.04 in	1.27 mm	1.02 mm	0.05 in	No Tail	Gold	0.068 "	1.73 mm	Beryllium Copper	2.54 mm	0.1 in	0.087 in	2.21 mm	3.05 mm	0.12 in

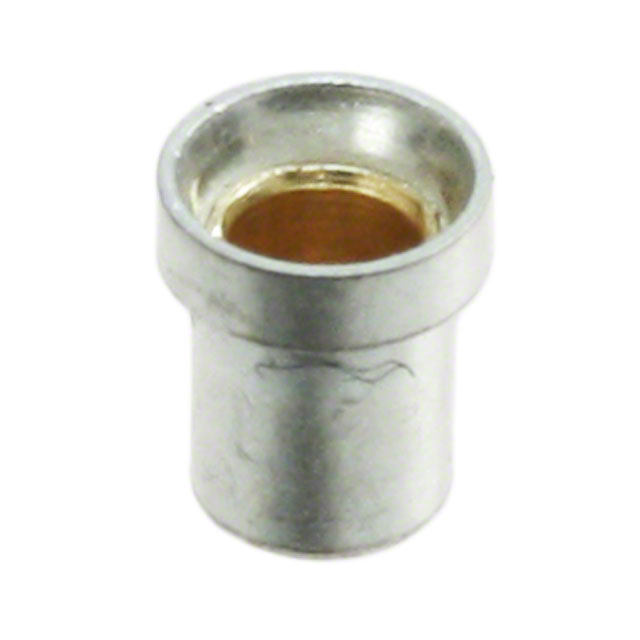

Mill-Max Manufacturing Corp. 0375-0-67-80-02-27-10-0	-55 C	125 °C	Knockout Bottom (Organic Fiber Plug®)	0.12 in	3.05 mm	Solder	30 Áin	0.76 Ám	0.04 in	1.27 mm	1.02 mm	0.05 in	No Tail	Gold	0.068 "	1.73 mm	Beryllium Copper	2.54 mm	0.1 in	0.087 in	2.21 mm	3.05 mm	0.12 in
