2314814 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE

Part	Fastening Type	Contact Type	Insulation Height	Insulation Height	Connector Type	Termination	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Rows	Number of Positions Loaded	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Voltage Rating	Contact Finish - Post	Mounting Type	Material Flammability Rating	Contact Shape	Number of Positions

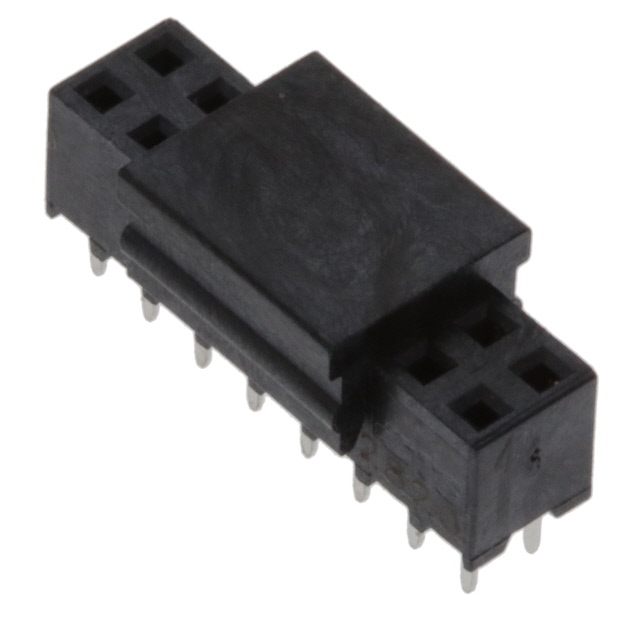

TE Connectivity Raychem Cable Protection 1-2314814-6	Push-Pull	Female Socket	0.177 in	4.5 mm	Receptacle	Solder	Black	0.079 "	2 mm	Gold	2	All	2 A	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	0.3 µm	12 µin	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	16	0.079 in	2 mm	Phosphor Bronze	125 VDC	Tin	Through Hole	UL94 V-0	Square

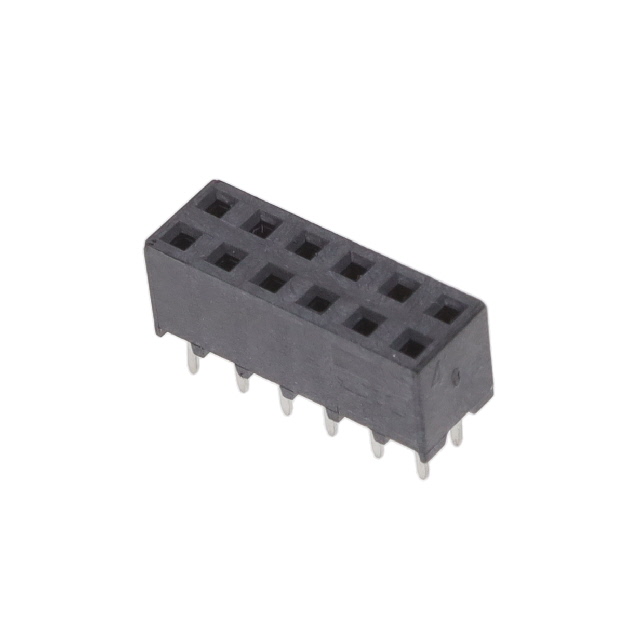

TE Connectivity Raychem Cable Protection 1-2314814-2	Push-Pull	Female Socket	0.177 in	4.5 mm	Receptacle	Solder	Black	0.079 "	2 mm	Gold	2	All	2 A	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	0.3 µm	12 µin	Liquid Crystal Polymer (LCP)	125 °C	-40 °C		0.079 in	2 mm	Phosphor Bronze	125 VDC	Tin	Through Hole	UL94 V-0	Square	12

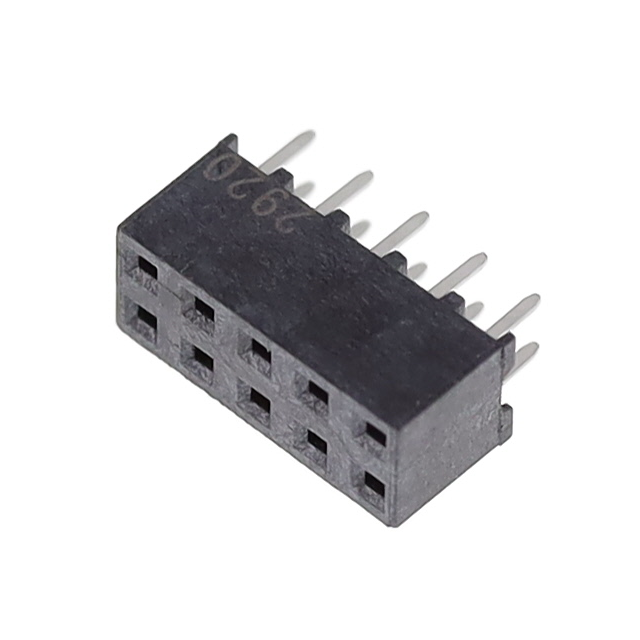

TE Connectivity Raychem Cable Protection 1-2314814-0	Push-Pull	Female Socket	0.177 in	4.5 mm	Receptacle	Solder	Black	0.079 "	2 mm	Gold	2	All	2 A	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	3 µm	118.1 µin	Liquid Crystal Polymer (LCP)	125 °C	-40 °C		0.079 in	2 mm	Phosphor Bronze	125 VDC	Tin	Through Hole	UL94 V-0	Square	10

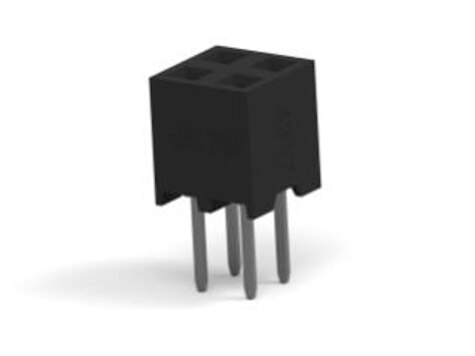

TE Connectivity Raychem Cable Protection 2314814-4	Push-Pull	Female Socket	0.177 in	4.5 mm	Receptacle	Solder	Black	0.079 "	2 mm	Gold	2	All	2 A	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	3 µm	118.1 µin	Liquid Crystal Polymer (LCP)	125 °C	-40 °C		0.079 in	2 mm	Phosphor Bronze	125 VDC	Tin	Through Hole	UL94 V-0	Square	4

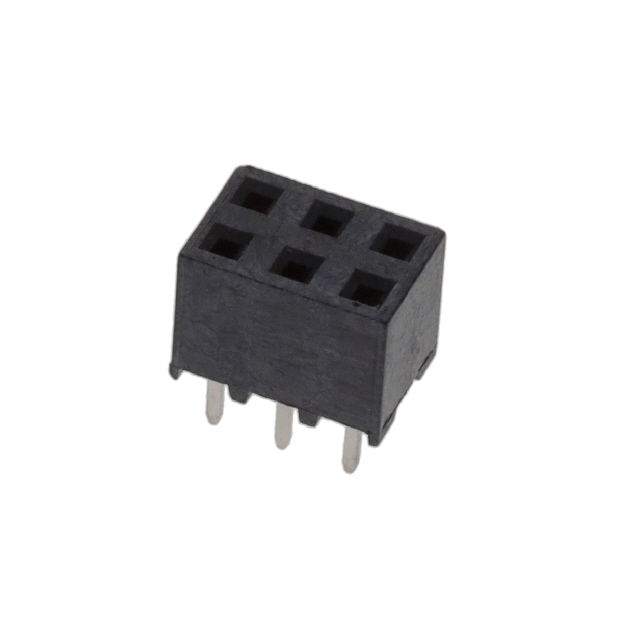

TE Connectivity Raychem Cable Protection 2314814-6	Push-Pull	Female Socket	0.177 in	4.5 mm	Receptacle	Solder	Black	0.079 "	2 mm	Gold	2	All	2 A	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	3 µm	118.1 µin	Liquid Crystal Polymer (LCP)	125 °C	-40 °C		0.079 in	2 mm	Phosphor Bronze	125 VDC	Tin	Through Hole	UL94 V-0	Square	6

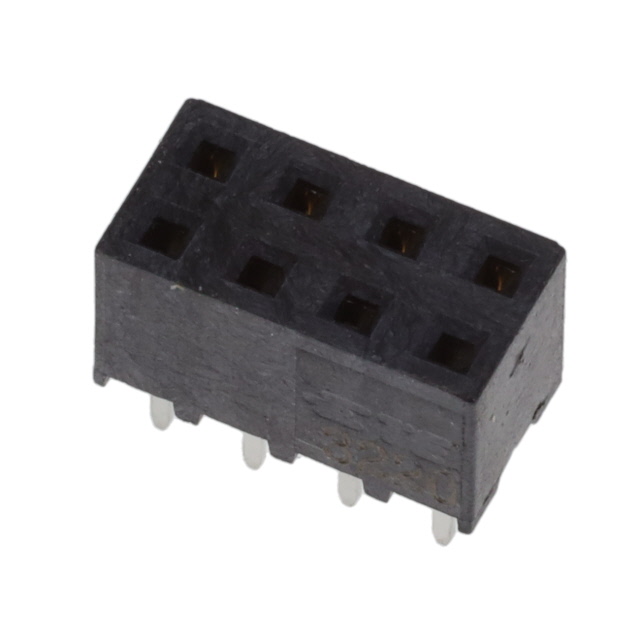

TE Connectivity Raychem Cable Protection 2314814-8	Push-Pull	Female Socket	0.177 in	4.5 mm	Receptacle	Solder	Black	0.079 "	2 mm	Gold	2	All	2 A	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	0.3 µm	12 µin	Liquid Crystal Polymer (LCP)	125 °C	-40 °C		0.079 in	2 mm	Phosphor Bronze	125 VDC	Tin	Through Hole	UL94 V-0	Square	8
