RC3-4 Series

Catalog

TEM 16X16X3.33MM

Part	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Qmax @ Th	Features	Voltage - Max [Max]	Delta Tmax @ Th	Number of Stages	Current - Max [Max]	Operating Temperature	Type	Height [z]	Resistance

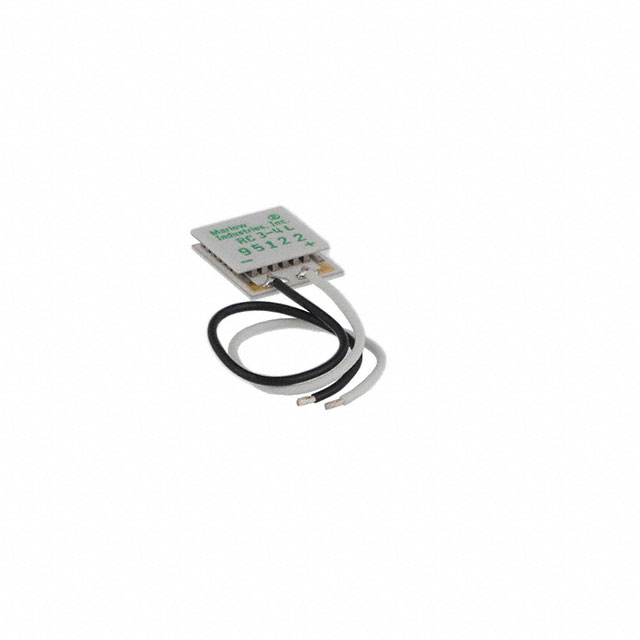

Marlow Industries, Inc. RC3-4-01L	20.5 mm	Rectangular	16 mm	9 W	Lapped Lead Wires	3.6 V	65 °C	1	3.7 A	130 °C	TEC (Thermoelectric Cooler)	3.33 mm	0.8 Ohms

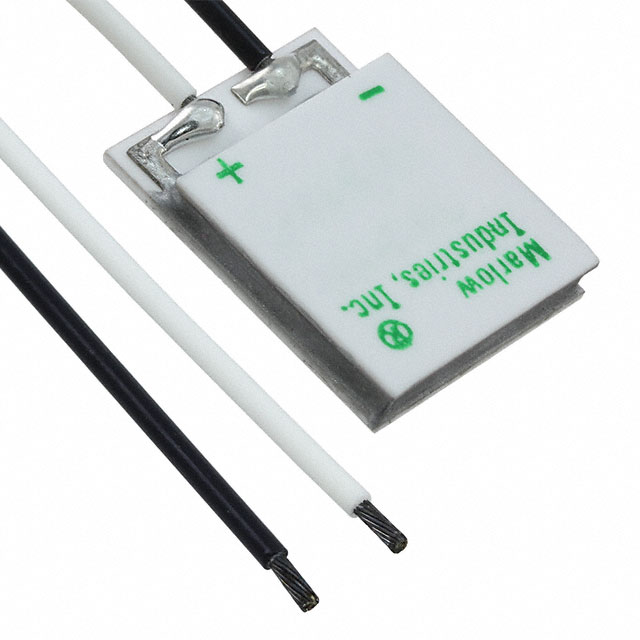

Marlow Industries, Inc. RC3-4-01LS	20.5 mm	Rectangular	16 mm	9 W	Lapped Lead Wires Sealed	3.6 V	65 °C	1	3.7 A	130 °C	TEC (Thermoelectric Cooler)	3.33 mm	0.8 Ohms

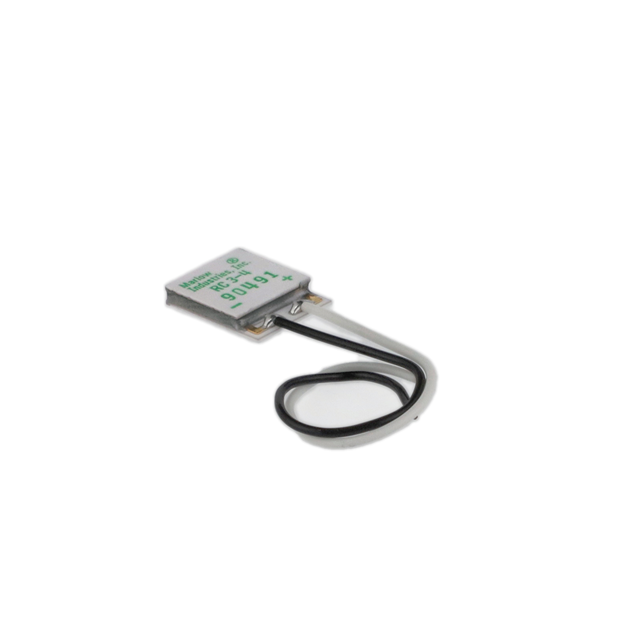

Marlow Industries, Inc. RC3-4-01S	20.5 mm	Rectangular	16 mm	9 W	Lead Wires Sealed	3.6 V	65 °C	1	3.7 A	130 °C	TEC (Thermoelectric Cooler)	3.43 mm	0.8 Ohms

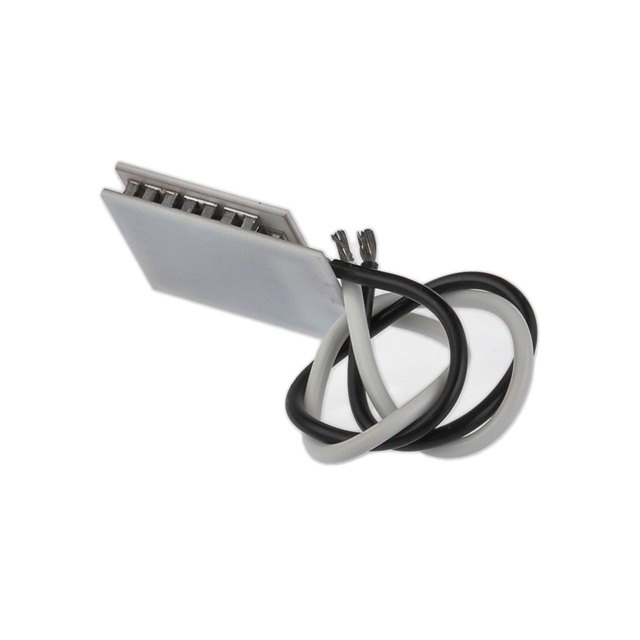

Marlow Industries, Inc. RC3-4-01	20.5 mm	Rectangular	16 mm	9 W	Lead Wires	3.6 V	65 °C	1	3.7 A	130 °C	TEC (Thermoelectric Cooler)	3.43 mm	0.8 Ohms
Marlow Industries, Inc. RC3-4-03LS	20.5 mm	Rectangular	16 mm	9 W	Lapped Lead Wires Sealed	3.6 V	65 °C	1	3.7 A	130 °C	TEC (Thermoelectric Cooler)	3.33 mm	0.8 Ohms
