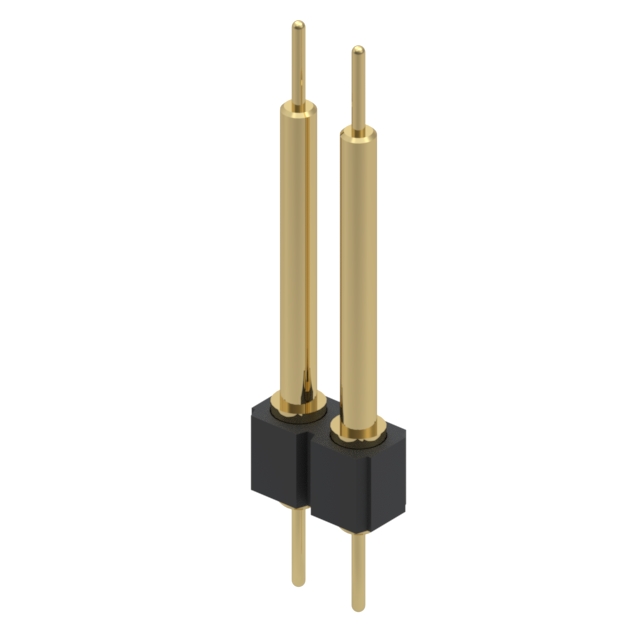

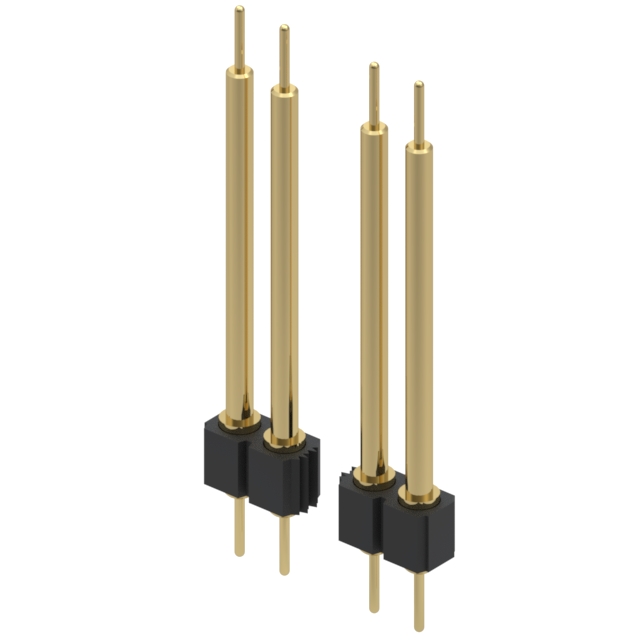

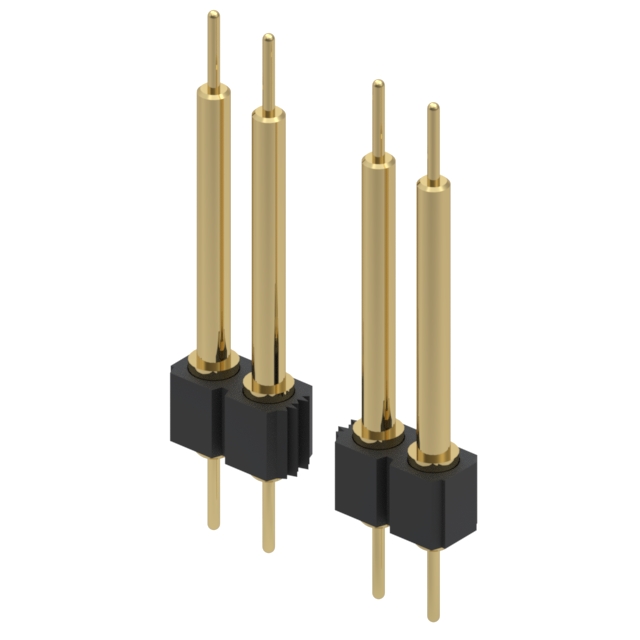

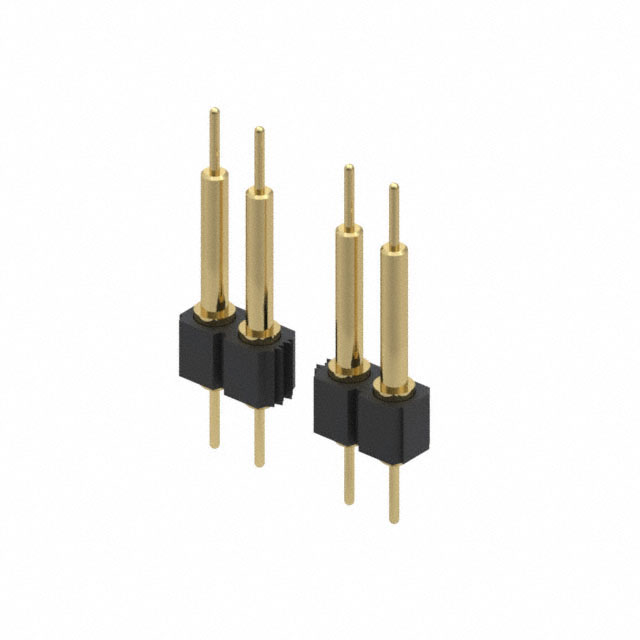

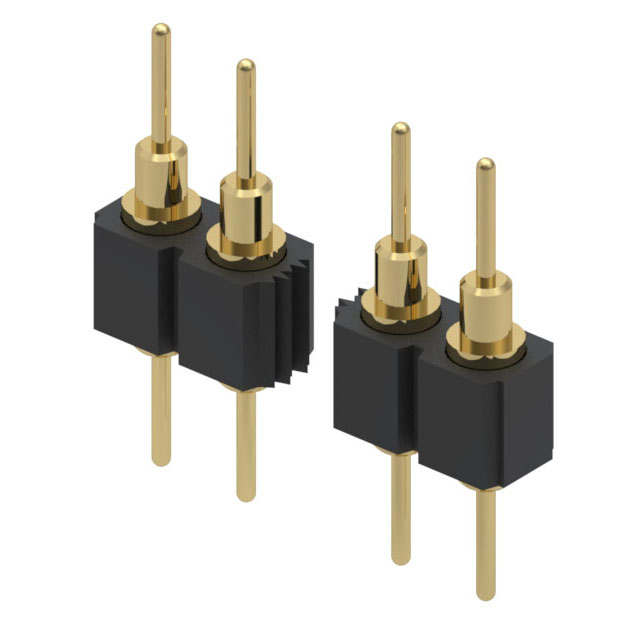

342-10 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN HDR 49POS 0.1 STACK T/H
| Part | Length - Stack Height [z] | Length - Stack Height [z] | Color | Number of Positions | Mounting Type | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Contact Finish - Post (Mating) | Contact Finish Thickness - Post (Mating) [custom] | Contact Finish Thickness - Post (Mating) [custom] | Number of Rows | Length - Overall Pin [x] | Length - Overall Pin [x] | Termination | Pitch | Pitch | Length - Tail | Length - Tail [x] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 8.5 mm | 0.335 in | Black | 49 | Through Hole | 3.18 mm | 0.125 in | Gold | 10 Áin | 0.25 Ám | 1 | 14.859 mm | 0.585 in | Solder | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | |||||
Mill-Max Manufacturing Corp. | 8.5 mm | 0.335 in | Black | 48 | Through Hole | 3.18 mm | 0.125 in | Gold | 10 Áin | 0.25 Ám | 1 | 14.859 mm | 0.585 in | Solder | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | |||||
 Mill-Max Manufacturing Corp. | Black | 26 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended | |||||||||||
 Mill-Max Manufacturing Corp. | Black | 56 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended | |||||||||||
Mill-Max Manufacturing Corp. | Black | 48 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended | |||||||||||
 Mill-Max Manufacturing Corp. | Black | 20 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended | |||||||||||
 Mill-Max Manufacturing Corp. | Black | 28 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended | |||||||||||
Mill-Max Manufacturing Corp. | Black | 30 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended | |||||||||||
 Mill-Max Manufacturing Corp. | Black | 2 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended | |||||||||||
Mill-Max Manufacturing Corp. | Black | 60 | Through Hole | 1 | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | DIP DIL - Header | Gold | Post Extended |
